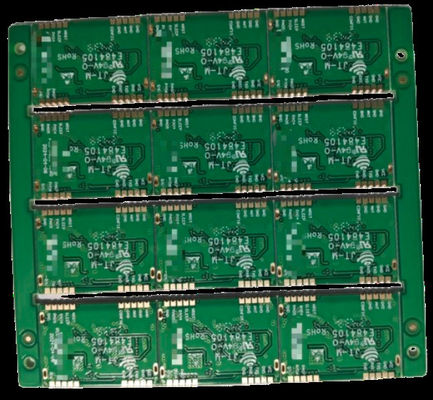

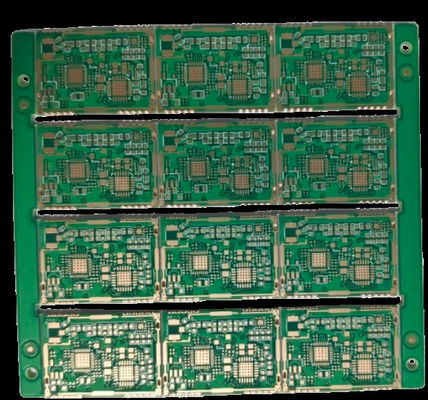

2 Ounces Copper Thickness Hybrid PCB Industrial Control Equipment 2.2mm Board Thickness White Silkscreen Color Rogers Material
| Place of Origin | China Shenzhen |
|---|---|
| Brand Name | JIETENG |
| Certification | UL TS16949 RoHS |
| Model Number | Hybrid Circuit Board |
| Minimum Order Quantity | 10 pcs |
| Price | 6~21 USD |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 8-10working days |
| Payment Terms | T/T, Western Union, |
| Supply Ability | 10000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impedance Control | Yes | Test | Flying Probe Test |
|---|---|---|---|
| Material | FR4 KB,Rogers | Layer | 6-Layer |
| Solder Mask Color | Green， Black | Silkscreen Color | White |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver | Board Thickness | 2.2mm |
| Profiling Punching | V-CUT | ||
| Highlight | Rogers Material Hybrid PCB,Industrial Control Equipment Hybrid PCB,2 Ounces Copper Hybrid PCB |
||
Product Description
Product Description:
This is a hybrid printed circuit board with excellent performance, reliability and design. White silk screen color, and also provides a variety of solder mask colors such as green, black and red, choose the most suitable color according to the needs.
This industrial control equipment hybrid printed circuit board has a thickness of 2.2 mm and adopts a 6-layer design, which can maximize the performance requirements of the equipment and has high reliability.The copper thickness is 2oz to ensure that it can meet the high current
Features:
- Product Name: Hybrid Circuit Board
- Copper Thickness: 2oz
- Layer: 6-Layer
- Test: Flying Probe Test
- Min. Hole Size: 0.3mm
- Silkscreen Color: White
- Features: Hybrid Printed Wiring Boards, Hybrid Printed Circuit Boards, Hybrid Printed Wiring Boards
Technical Parameters:
| Surface Finish | HASL, ENIG, OSP, Immersion Silver |
| Layer | 6-Layer |
| Board Thickness | 2.2mm |
| Copper Thickness | 2oz |
| Silkscreen Color | White |
| Solder Mask Color | Green, Black |
| Profiling Punching | V-CUT |
| Min. Hole Size | 0.3mm |
| Impedance Control | Yes |
| Test | Flying Probe Test |
Applications:
Industrial control equipment hybrid circuit boards are suitable for a variety of industries, such as: automotive, aerospace, medical, industrial automation, and more.
· Automotive Industry: Industrial control equipment hybrid PCBs are widely used in the automotive industry, especially vehicles equipped with advanced electronic systems. Shenzhen Jieteng Circuit Co., Ltd. hybrid PCBs are UL and TS16949 certified, ensuring that the highest quality and reliability standards are met.
· Aerospace Industry: The aerospace industry requires high-performance electronic devices that can withstand extreme temperatures and environments. Hybrid PCBs are ideal for this purpose because they can be designed to specific requirements. With 2oz copper thickness and flying probe test capabilities, Shenzhen Jieteng Circuit Co., Ltd.'s hybrid PCBs are an excellent choice for aerospace applications.
· Medical Industry: In the medical industry, reliability and accuracy are critical. Hybrid PCBs are used in a variety of medical devices, from patient monitors to diagnostic equipment.
Industrial Automation: Hybrid PCBs are widely used in industrial automation for controlling equipment and machinery.
· Telecommunications: Telecommunications equipment requires high-performance electronic devices that can handle large amounts of data. Hybrid PCBs are widely used in this industry, especially in routers, switches, and other network equipment.
FAQ:
Q1. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q5. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
