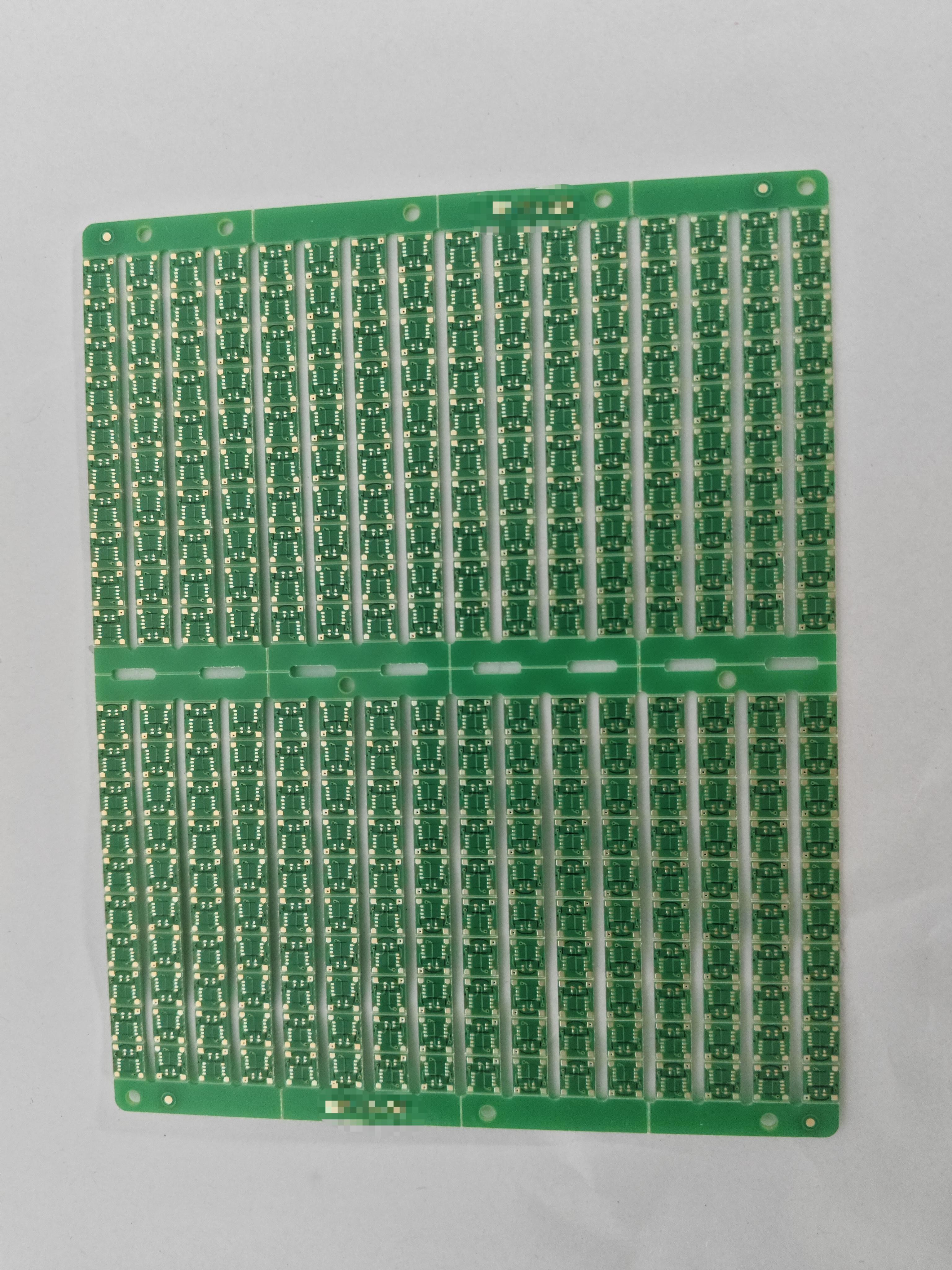

4-Layer Hybrid Circuit Board With 2oz Copper For Industrial Power Applications
| Place of Origin | China Shen |
|---|---|
| Brand Name | JIETENG |
| Certification | UL ROHS IATF16949 |
| Model Number | Hybrid Circuit Board |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 10-16 working days |
| Payment Terms | Negotiable |
| Supply Ability | 1000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Copper Thickness | 2oz | Test | Flying Probe Test |
|---|---|---|---|
| Material | FR4 HF Material ,TP-2 | Silkscreen Color | White |
| Board Thickness | 1.88mm | Solder Mask Color | Green |
| Min. Hole Size | 0.5mm | Product Name | 4-layer Gold-plated 80U Pcb |
| Highlight | 4 Layer Hybrid Circuit Board,Industrial Power Hybrid Circuit Board,2oz Copper Hybrid Circuit Board |
||
Product Description
Technical Parameters:
| Test | Flying Probe Test |
| Min. Hole Size | 0.5mm |
| Material | FR4 HF Material, TP-2 |
| Board Thickness | 1.88mm |
| Product Name | 4-layer Gold-plated 80U Pcb |
| Solder Mask Color | Green |
| Copper Thickness | 2oz |
| Silkscreen Color | White |
| Surface Finish | GOLD-PLATED/ENIG |
| Impedance Control | Yes |
Applications:
Hybrid circuit boards can be found in a variety of industries, including automotive, aerospace, telecommunications, and consumer electronics. These boards are ideal for applications that require high reliability, compactness, and high-density interconnects, and are suitable for applications that require medium complexity and high-speed signal processing. They are also well suited for applications that require high thermal conductivity, such as LED lighting, power supplies, and motor control. The gold-plated surface treatment enhances the thermal conductivity of the board, ensuring optimal performance in demanding applications. We can customize to our customers' specific requirements, including size, shape, and layer configuration. Manufactured in Shenzhen, China, it is suitable for both sample processing and mass production, ensuring high quality and cost-effectiveness.
FAQ:
Q1. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q5. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
