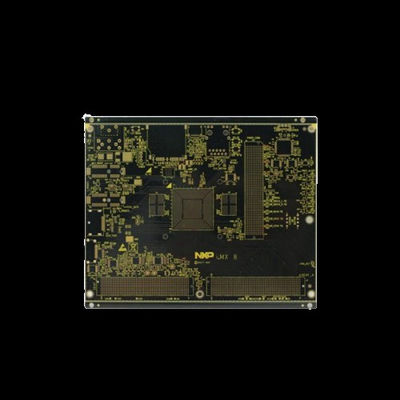

0.1mm Minimum Trace Width Multilayer PCB with Rogers Base Material and Resin Plugging
| Place of Origin | CHINA SHENZHEN |
|---|---|
| Brand Name | JIETENG |
| Certification | UL ROHS SGS TS16949 |
| Model Number | Multilayer printed circuit board Resin plugging |
| Minimum Order Quantity | 1pcs |
| Price | 0.2-6USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 5-8 working day |
| Payment Terms | T/T, Western Union, |
| Supply Ability | 1000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Testing Service | 100% E-testing | Thickness | 0.4-6.0mm |
|---|---|---|---|
| Impedance Control | Yes | Supplier Type | OEM ODM |
| Min Line Width | 0.1mm | Base Materia | FR4, Rogers，Teflon |
| Type | Communication Products，Industrial Equipment | Solder Mask Color | Green |
| Minimum Trace Width | 0.1mm | Copper Foil Thickness | 0.5-8OZ |
| Highlight | 0.1mm Minimum Trace Width Multilayer PCB,Multilayer PCB with Resin Plugging,Rogers Base Material Multilayer PCB |
||
Product Description
Product Description:
Resin plugging is a common special process for PCB circuit boards. It is generally used for holes in the plate or holes on the pad, and is used in multi-layer boards, high-frequency mixed-pressure boards, and special vias. Our company can maturely produce this process.
Application:
Multilayer printed circuit board, also known as multilayer printed circuit board or multilayer printed circuit board, is one of Jieteng's most popular products, providing high-quality, reliable solutions for a wide range of applications. The product brand is Jieteng, the model is motherboard pcb 03, and it is certified by UL, SGS, ISO9001 and ROHS. The minimum order quantity is 1 and the price is 0.2. The product will be delivered within 8 days after payment, and the delivery package is 20 kg/box, vacuum packed. Jieteng also promises a supply capacity of 10000/day. In addition, the silk screen color of the multilayer printed circuit board is white, and the copper thickness is 1/4 ounce. In addition, the solder mask color is green, the board thickness is 1.6 mm, and the number of layers is 4-8. With all these features, Jieteng multilayer printed circuit boards are sure to provide excellent performance in different applications and industries.
Customization:
Jieteng Multilayer Printed Circuit Board
Jieteng provides customized multilayer printed circuit board (PCB) service, model: motherboard pcb 03. Our multilayer printed circuit boards are UL, SGS, ISO9001 and ROHS certified, and the minimum order quantity is 1. The price is 0.2, and the packaging is 20 kg/box, vacuum packed. The delivery time is 8 days, and the accepted payment methods include T/T, Paypal and L/C. Our supply capacity is 100,00/day, and our maximum board size is 1200*6100mm. The copper thickness is 0.5/8oz, and the minimum screen printing dam and solder mask dam is 4mil. The solder mask color is green.
FAQ:
Q1. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4. What is the minimum order quantity?
A: There is no minimum order quantity in our company. We are able to flexibly handle small and large batch production.
Q5. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
Q6. What is our brand?
A: Jieteng Circuit Co., Ltd
