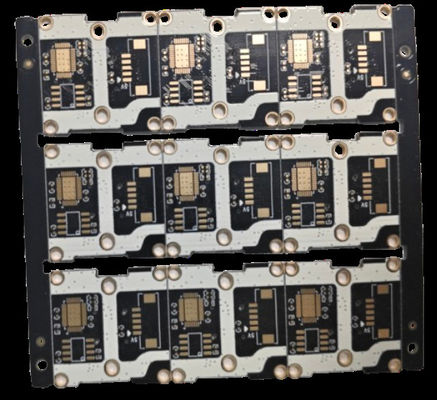

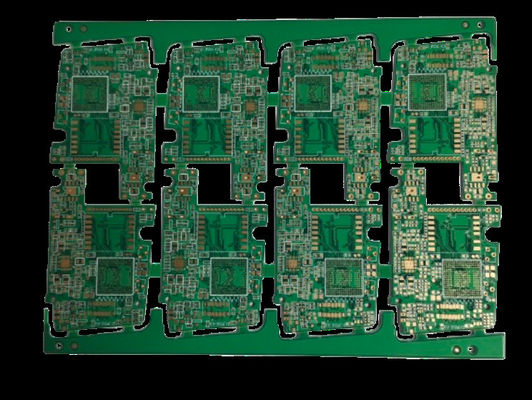

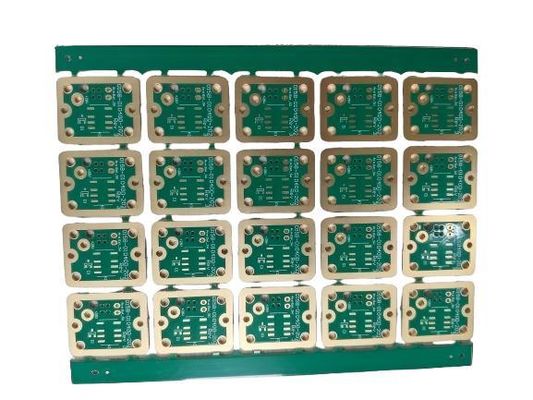

FR4 HF Material Multilayer PCB, Suitable For Communication Products, RF Products
| Place of Origin | China Shenzhen |
|---|---|
| Brand Name | JIETENG |
| Certification | UL IATF16949 |
| Model Number | High frequency circuit board |
| Minimum Order Quantity | Negotiable |
| Price | 20~50 USD |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 13-15 work days |
| Payment Terms | Negotiable |
| Supply Ability | 1000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Solder Mask Color | Green，Black | Surface Finish | ENIG Lead-free Tin-spray |
|---|---|---|---|
| Application Scenario | Applicable To Aerospace | Thickness Finished | 1.57mm，+/-10% Tolerance |
| Legend | White, For Both Side | Raw Material | FR4 HF Material |
| Certificates | UL, RoHS | Number Of Layers | 6-Layer |
Product Description
Product Description:
Shenzhen Jieteng Circuit Co., Ltd.'s multi-layer printed circuit board products provide excellent quality and performance to meet the needs of modern electronic applications. We provide a variety of solder mask colors for reference, among which green and black solder mask colors are used most frequently, which not only ensure circuit protection and insulation, but also provide rich design aesthetics.
Our multi-layer printed circuit board finished thickness is 1.57 mm, and the tolerance is strictly controlled at +/-10%, ensuring manufacturing consistency and precision. This consistency is particularly important to ensure reliable electrical connections and achieve optimal performance under various working conditions.
The legends on our multi-layer printed circuit boards are white and located on both sides of the board. This feature improves the visibility and readability of component labels, thereby facilitating efficient assembly and maintenance processes.
In terms of surface treatment, we provide a variety of surface treatments, especially ENIG (electroless nickel immersion gold) and lead-free tin spraying process, which is a high-quality coating with excellent conductivity, corrosion resistance and solderability. This surface treatment ensures long-term reliability of the product and is compatible with various soldering processes.
Shenzhen Jieteng Circuit Co., Ltd. multi-layer printed circuit boards are manufactured using FR4 HF (high frequency) material, which is ideal for high-performance applications where signal integrity and durability are critical. Whether used in telecommunications, automotive, medical devices or industrial equipment, our multi-layer printed circuit boards provide excellent quality and reliability.
Features:
- Product Name: Multilayer Printed Circuit Board
- Surface Finish: ENIG Lead-free Tin-spray
- Raw Material: FR4 HF Material
- Thickness Finished: 1.57mm, +/-10% Tolerance
- Certificates: UL, RoHS
- Solder Mask Color: Green, Black
Technical Parameters:
| Technical Parameter | Specification |
|---|---|
| Solder Mask Color | Green, Black |
| Thickness Finished | 1.57mm, +/-10% Tolerance |
| Surface Finish | ENIG Lead-free Tin-spray |
| Application Scenario | Applicable To Aerospace |
| Raw Material | FR4 HF Material |
| Legend | White, For Both Side |
| Certificates | UL, RoHS |
Applications:
Jieteng's high-frequency circuit board is a high-end product that is widely used in various applications and scenarios, especially in the aerospace field. This multi-layer printed circuit board is designed to meet the high requirements of aerospace technology and ensure excellent performance and reliability.
This multi-layer printed circuit board is manufactured in Shenzhen, China, the PCB capital, and has passed UL IATF16949 certification to ensure that its quality meets international standards. Its raw material is FR4 HF material, which is known for its high-frequency performance and is ideal for aerospace applications.
With a daily supply capacity of 1,000 pieces, Jieteng's high-frequency circuit boards are ready to meet the needs of aerospace projects. The price range of $20 to $50 makes it an affordable choice for high-quality circuit boards.
The delivery time of 13-15 working days ensures that customers receive their orders in time and complete their projects efficiently. We have no minimum order quantity and create suitable, economical, high-quality products according to your needs, while meeting the needs of quick sample or large-volume orders.
Whether it is used for satellite communication systems, radar technology or other aerospace electronic equipment, Jeteng's high-frequency circuit boards are an excellent choice for reliable and high-performance circuits.
FAQ:
Q. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
