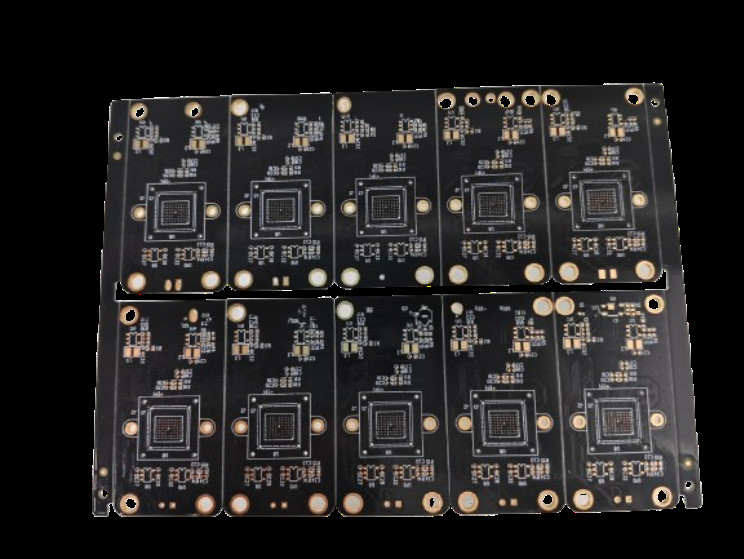

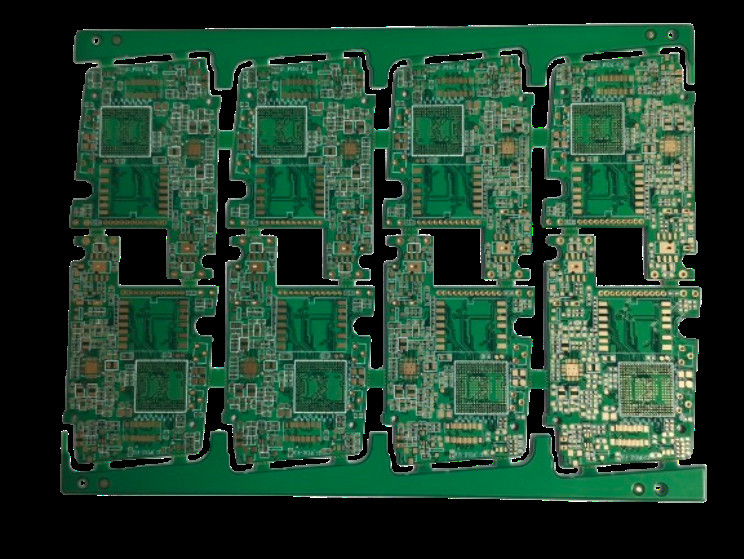

1.57mm Thickness Multilayer Printed Circuit Boards For Aerospace Applications
| Place of Origin | China Shenzhen |
|---|---|
| Brand Name | Shenzhen Jieteng Circuit Co., Ltd. |
| Certification | UL IATF16949 |
| Model Number | High frequency circuit board |
| Minimum Order Quantity | 20 pcs |
| Price | 11~35 USD |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 10-12 work days |
| Supply Ability | 1000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certificates | UL, RoHS | Raw Material | FR4 HF Material ，Rogers |
|---|---|---|---|
| Thickness Finished | 1.57mm，+/-10% Tolerance | Solder Mask Color | Green，Black |
| Legend | White, For Both Side | Surface Finish | ENIG Lead-free Tin-spray |
| Application Scenario | Applicable To Aerospace | Copper Thickness | 1oz |
| Silkscreen Color | White | Different Impendance | 75-150 Ohm+/-10% |
| Product Area | Aerospace Applications | ||
| Highlight | Multilayer Printed Circuit Boards,1.57mm Printed Circuit Boards,Aerospace Printed Circuit Boards |
||
Product Description
Product Description:
Our multi-layer printed circuit boards feature white text on both sides. They feature an ENIG, lead-free tin-spray finish to ensure high-quality performance and long-lasting durability. Our multi-layer printed circuit boards are 1.57mm thick with a tolerance of +/-10%.
Our multi-layer printed circuit boards are UL and RoHS certified, meeting strict safety and environmental standards to ensure reliable product performance.
Features:
- Product Name: Multilayer Printed Circuit Board
- Legend: White, For Both Side
- Surface Finish: ENIG Lead-free Tin-spray
- Certificates: UL, RoHS
- Solder Mask Color: Green, Black
- Application Scenario: Applicable To Aerospace
Technical Parameters:
| Certificates | UL, RoHS |
| Surface Finish | ENIG Lead-free Tin-spray |
| Thickness Finished | 1.57mm, +/-10% Tolerance |
| Application Scenario | Applicable To Aerospace |
| Raw Material | FR4 HF Material,Rogers |
| Legend | White, For Both Side |
| Solder Mask Color | Green, Black |
| Different Impendance | 75-150 ohm+/-10% |
| Copper thickness | 1 oz |
Applications:
Our multilayer printed circuit boards have a wide range of applications. They are often used in the aerospace industry and have high-frequency and high-speed signal transmission capabilities. These circuit boards use high-performance materials such as FR4 HF materials, Rogers materials, so that the drawings can withstand extreme conditions, which is very suitable for space exploration missions and satellite technology.
Our multilayer printed circuit boards are also widely used in medical devices, military equipment, and industrial control systems. They are suitable for electronic devices that require high-speed data transmission, low noise, and high precision.
FAQ:
Q1. What is the brand name of this Multilayer Printed Circuit Board?
A: The brand name is Shenzhen Jieteng Circuit Co., Ltd.
Q2. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q3. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q4. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q5. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q6. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
