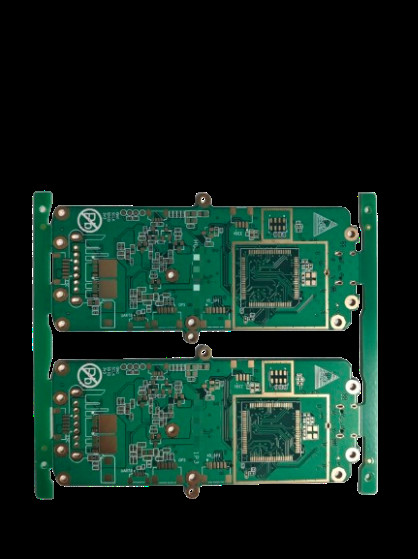

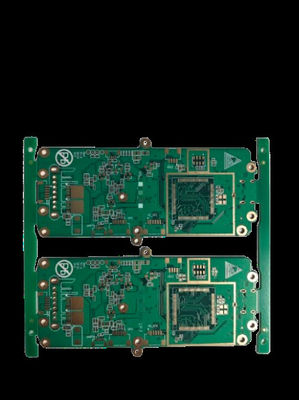

Communication Equipment Multi-Layer PCB with Multi-Group Impedance Control RoHS Certified

Product Description:

Multilayer PCB is a versatile product that can be used in a variety of applications. It is available in a variety of solder mask colors, green, blue, red, etc., and the thickness of the board is 1.6mm with a tolerance of +/-10%.

The surface treatment of multilayer PCB is ENIG or lead-free tin spray paint or OSP. These surface treatments are also commonly used and ideal for communication equipment because they have excellent performance in various environments. Because it provides a reliable and durable surface that can resist long-term wear and tear, ensuring that the circuit board will operate reliably for a long time.

Features:

• Product Name: Multilayer Printed Circuit Board
• Legend: White
• Certificates: UL, RoHS
• Thickness Finished: 1.6mm,+/-10% Tolerance
• Solder Mask Color: Green, Blue, White, Black, Red,etc
• Surface Finish: HASL, ENIG, OSP

Technical Parameters:

Applications:

The JIETENG high-frequency circuit board is a multi-layer printed circuit board produced in Shenzhen, China. It is a high-quality product that has passed UL IATF16949 certification, ensuring its durability and reliability.

The JIETENG high-frequency circuit board is made of FR4 HF material, which is a high-quality material that ensures that the circuit board is resistant to heat and other environmental factors. The product also comes with UL and RoHS certificates, ensuring that it is safe and environmentally friendly to use.

The JIETENG high-frequency circuit board has a variety of different solder mask colors, such as green, blue, black, red, etc., with white text on both sides, and a copper thickness of 3oz. The product can meet the needs of safe passage of large currents.

The JIETENG high-frequency circuit board is suitable for a variety of industry applications, such as electronic communication equipment applications. Its multi-layer design ensures that it can handle complex circuits and high-frequency signals to prevent signal distortion.

FAQ:

Q1. What information is needed for PCB quotation?

A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )

Q2. What file formats are accepted for PCB production?

A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.

Q3. Are my files safe?

A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.

Q4. What is the minimum order quantity?

A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.

Q5. How much is the shipping cost?

A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
