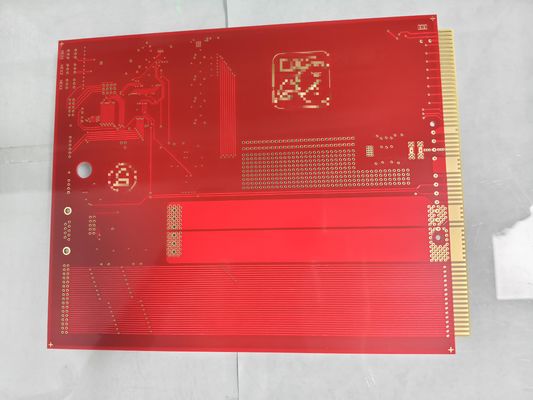

RoHS Compliant 6-Layer Green And Red Solder Mask MCPCB For Mobile Phone Batteries
Place of Origin | China Shen |
---|---|
Brand Name | JIETENG |
Certification | UL TS16949 |
Model Number | Multilayer Printed Circuit Board |
Minimum Order Quantity | 1000pcs |
Price | 2-9.9USD/piece |
Packaging Details | Blank carton, vacuum packed |
Delivery Time | 9-12 work days |
Payment Terms | T/T, Western Union |
Supply Ability | 50000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLegend | White, For Both Side | Solder Mask Color | Red.Blue |
---|---|---|---|
Thickness Finished | 1.6mm,+/-10% Tolerance | Certificates | ISO9001, UL, RoHS |
Raw Material | FR4 TG150 | Surface Finish | HASL, ENIG |
Usage | For Cellphone Battery | ||
Highlight | RoHS Compliant MCPCB,Green And Red Solder Mask MCPCB,Mobile Phone Batteries MCPCB |
Product Description:
There are two options for the surface finish of this multi-layer printed circuit board: HASL and ENIG. HASL or Hot Air Solder Leveling is a cost-effective and easy-to-apply surface finish. ENIG or Chemical Nickel/Immersion Gold is a more advanced surface finish that provides excellent solderability and corrosion resistance.
This multi-layer printed circuit board is designed to the highest industry standards and is ISO9001, UL, and RoHS certified. These certificates ensure that the circuit board meets the highest quality standards and is safe to use in electronic applications. The UL certificate ensures that the circuit board meets safety standards and can be used in a variety of applications without creating any hazards. The RoHS certificate ensures that the circuit board does not contain any hazardous materials and is environmentally friendly.
Features:
- Product Name: Multilayer Printed Circuit Board
- Surface Finish: HASL, ENIG
- Thickness Finished: 1.6mm,+/-10% Tolerance
- Certificates: ISO9001, UL, RoHS
- Raw Material: FR4 TG150

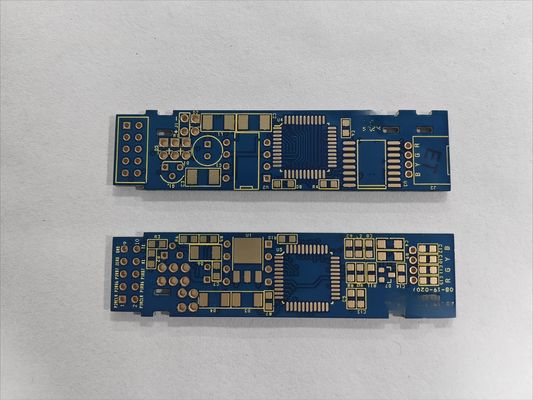

- Solder Mask Color: Blue, Red
Applications:
JIETENG's multi-layer printed circuit boards are ideal for mobile phone battery manufacturing. The product is designed to provide high performance and reliability, ensuring that the battery operates in an optimal and safe manner.
Consumer Electronics: Multi-layer printed circuit boards can be used in consumer electronics such as game consoles, digital cameras, and smart home devices.
Automotive Industry: JIETENG's multi-layer printed circuit boards are also used in the automotive industry. It is ideal for use in a variety of automotive systems such as engine control units, infotainment systems, and advanced driver assistance systems.
Industrial Equipment: Multi-layer printed circuit boards are widely used in industrial equipment such as robots, manufacturing machinery, and control systems. Its high performance and reliability ensure that these systems operate in an optimal state.
JIETENG's multi-layer printed circuit boards are in high demand, and the company has a supply capacity of 50,000 pieces/day. The delivery time for this product is 9-12 working days, ensuring that customers receive their orders in a timely manner.
Support and Services:
Our multilayer printed circuit board products are backed by comprehensive technical support and services to ensure our customers have a seamless experience. Our team of experts is ready to assist with any technical issues and answer any questions that may arise during product installation and use. Our team is dedicated to providing excellent customer service and support.
FAQ:
Q1. What information is needed for PCBA quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer,BOM
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4. What is the minimum order quantity?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.
Q5. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
