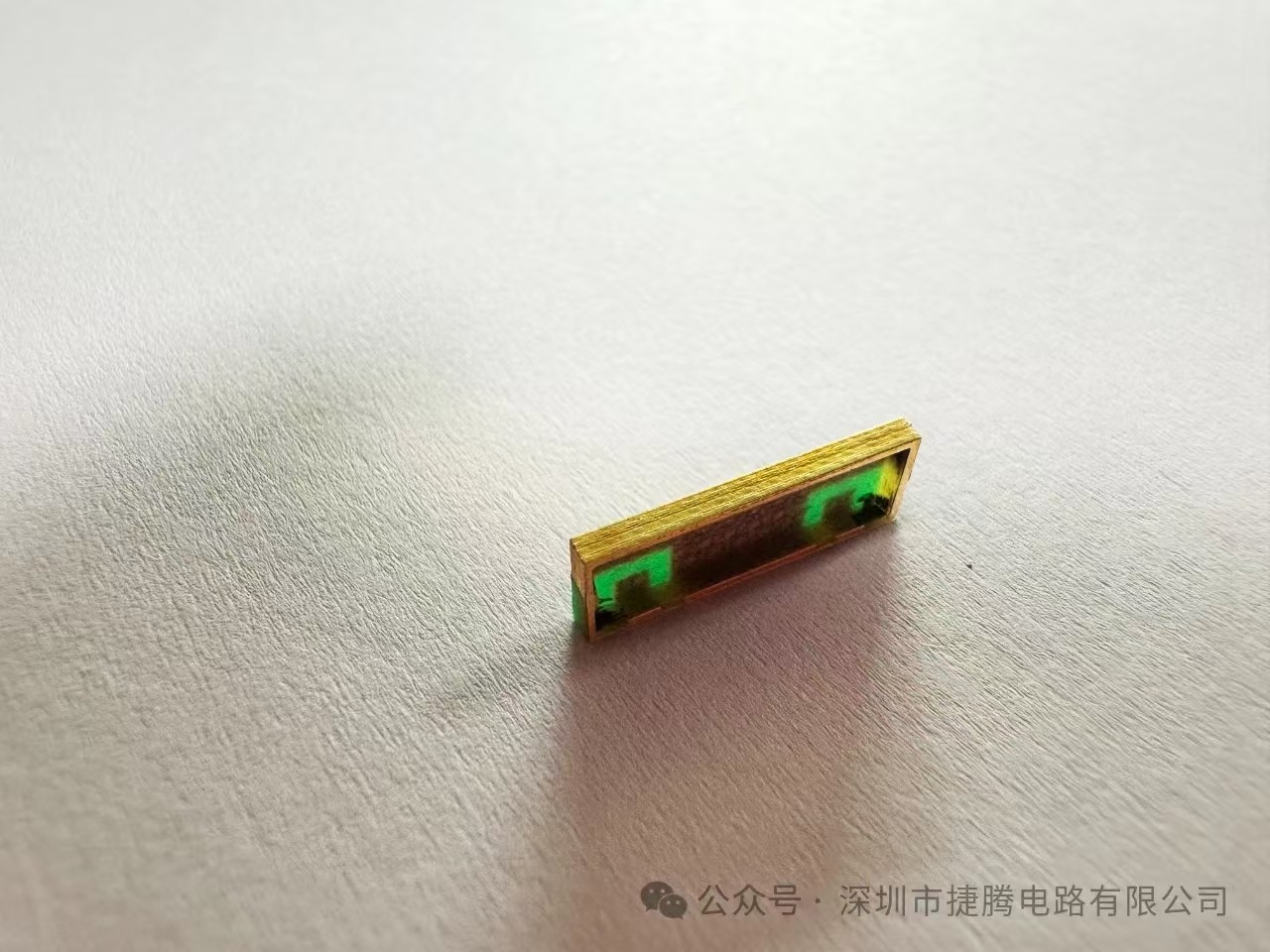

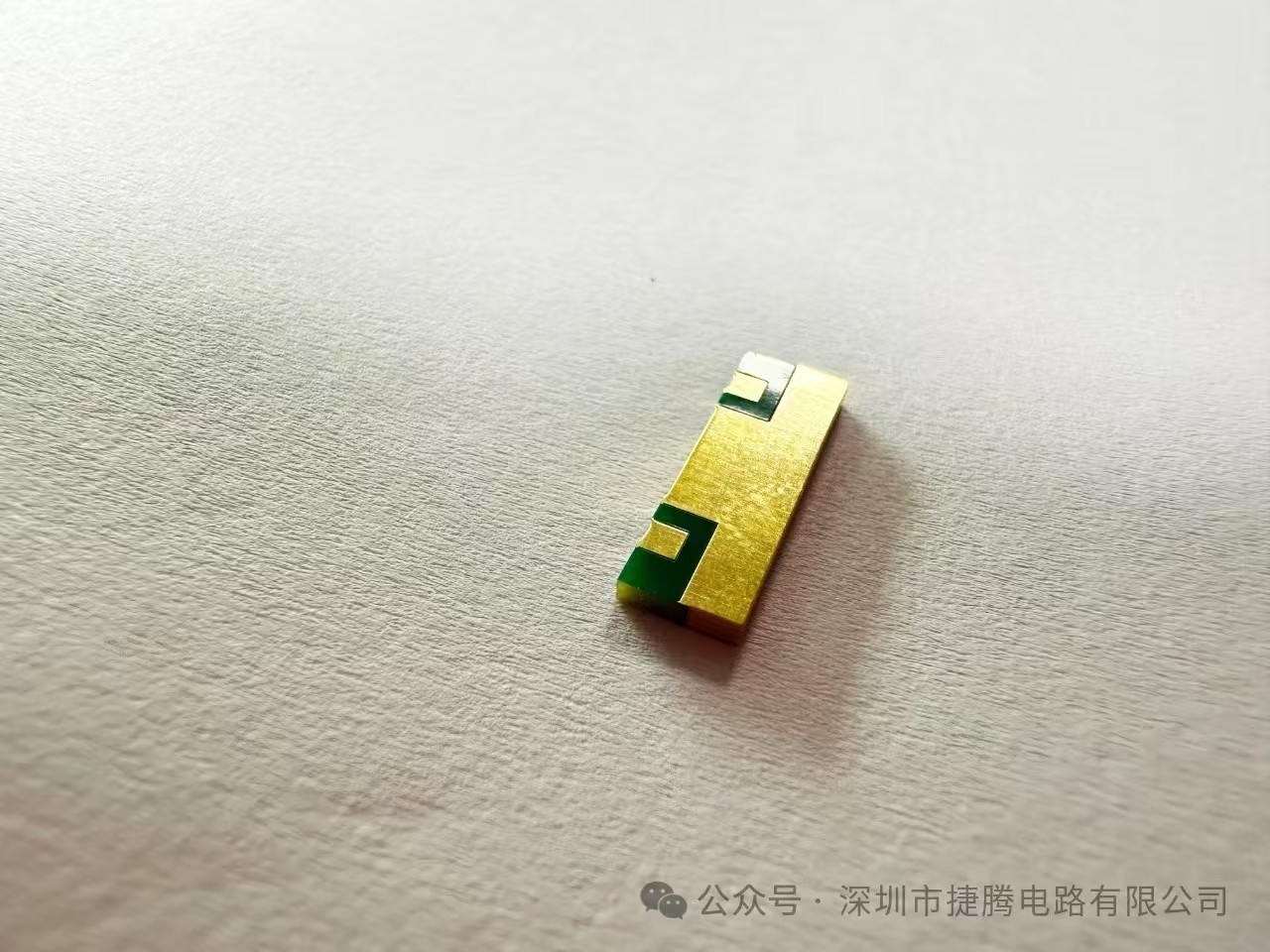

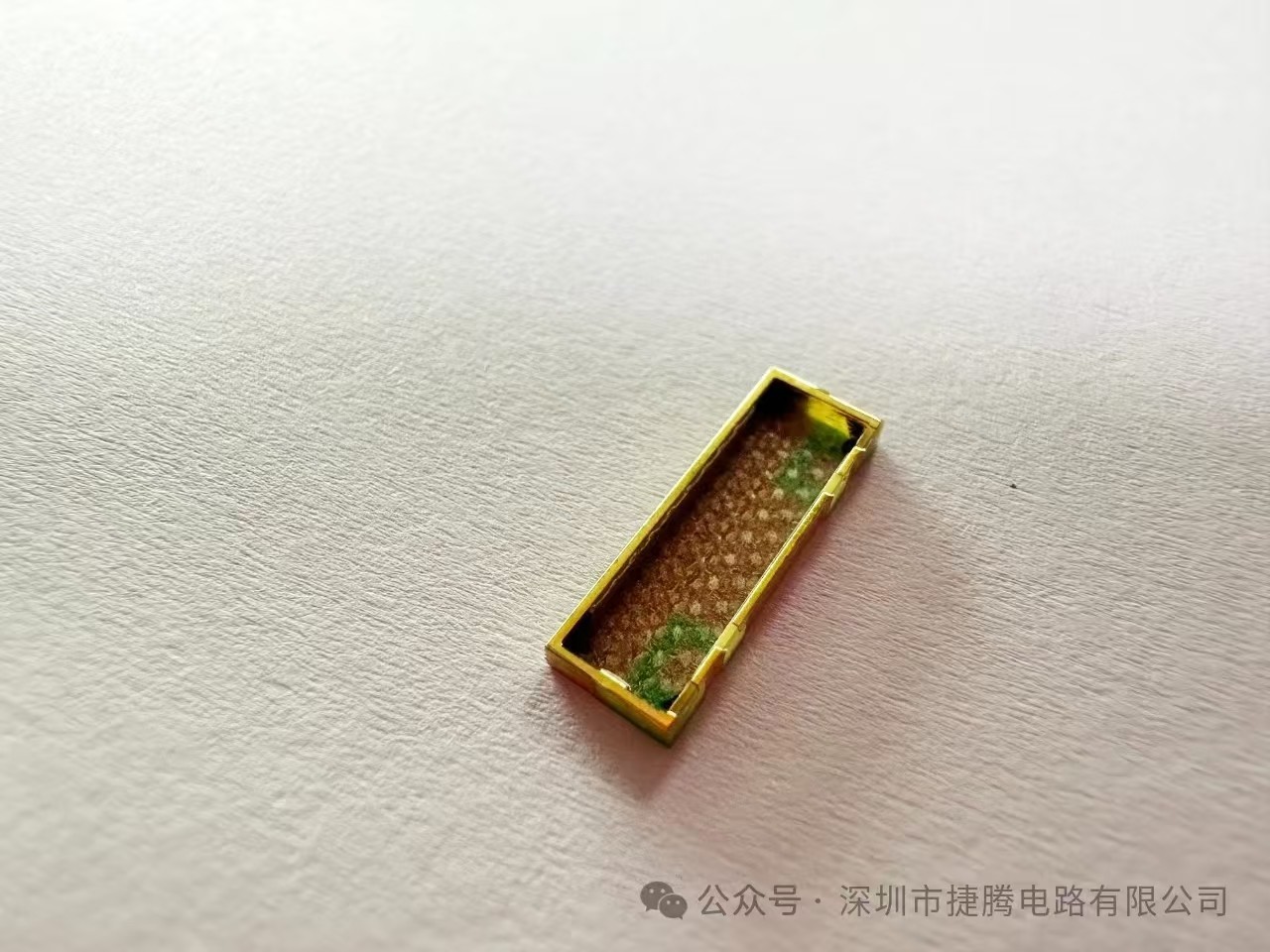

ENIG High Frequency 4 Layer PCB 2oz , Custom Communication PCB

Place of Origin China
Brand Name JIETENG
Certification UL ROHS SGS ISO9001 TS16949
Model Number 4 layers of Rogers 4350B+FR4
Minimum Order Quantity Negotiable
Price 1-9.9USD/piece
Packaging Details Blank carton, vacuum packed
Delivery Time 10-15 Working Days
Payment Terms Negotiable
Supply Ability 1000PCS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Time 10-15 Working Days Usage For Cellphone Battery
Surface Finish HASL, ENIG Solder Mask Color Blue.Green
Thickness Finished 1.6mm,+/-10% Tolerance Legend White, For Both Side
Hole Pitch Standard 2.54mm Certificates ISO9001, UL, RoHS
Highlight

4 Layer High Frequency PCB

,

Custom Communication PCB

,

ENIG High Frequency PCB

Leave a Message
Product Description

Product Description:

Multilayer printed circuit boards are commonly used in a variety of communication equipment. It is particularly useful in applications that require high-density and high-performance circuits.
It is made of high-quality FR4 TG150, which is a flame-retardant and heat-resistant substrate that is ideal for use in communication equipment. The finished thickness is 1.6 mm with a tolerance of +/-10%. This thickness is ideal for supporting complex electronic circuits and components while still maintaining a compact and lightweight design.
When you order a multilayer printed circuit board, the estimated delivery time is 10-15 business days. This means that you can receive the PCB quickly and efficiently without having to wait for a long time. It is very suitable for use in electronic devices.

Features:

  • Product Name: Multilayer Printed Circuit Board
  • Lead Time: 10-15 Working Days
  • Solder Mask Color: Blue, Green
  • Certificates: ISO9001, UL, RoHS
  • Legend: White, For Both Side
  • Thickness Finished: 1.6mm, +/-10% Tolerance


Applications:

4-layer Rogers 4350B+FR4 provides excellent insulation and ensures that the circuit board can handle high voltage and current, suitable for a wide range of applications and scenarios, such as electronic devices such as computers, communication equipment, medical equipment, and automotive electronics. At the same time, it complies with ISO9001, UL and RoHS standards, which ensures that the product meets the highest quality standards and can be safely used in electronic devices.



FAQ:

Q: What is the model of the Jeteng multilayer printed circuit board?
A: The model of the Jeteng multilayer printed circuit board is 4-layer Rogers 4350B+FR4.
Q: What are the benefits of using a Jeteng multilayer printed circuit board?
A: The Jeteng multilayer printed circuit board provides high-density interconnection, improved signal integrity, and reduced crosstalk. It also allows for more complex circuit designs and can reduce the overall size of the final productQ: What applications are Jeteng multilayer printed circuit boards suitable for?
A: Jeteng multilayer printed circuit boards are suitable for a wide range of applications, including telecommunications, aerospace, medical devices, and consumer electronics
Q: Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property throughout the process. All of our customers' files will never be shared with any third party.
Q: What is the minimum order quantity?
A: There is no minimum order quantity for our company. We are able to flexibly handle small and large batch production.
Q: How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
