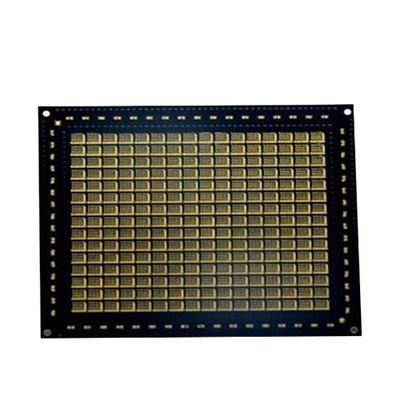

1.6MM Board Thickness 8-Layer PCB Circuit Board Black Solder Mask With White Characters

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PCB Board Assembly Material FR4, Aluminum, Rogers, Etc.
Assembly Type SMT, Through Hole, Mixed, Etc. Board Thickness 0.2mm-3.2mm
Min. Line Width/Space 3mil/3mil Min. Hole Size 0.2mm
Testing AOI, X-Ray, Flying Probe, Etc. Silk Screen Color White, Black, Yellow, Etc.
High Light

1.6MM 8-Layer PCB

,

Black Solder Mask PCB Circuit Board

Leave a Message
Product Description

Product Description:

PCB Board Assembly - Product Overview

The PCB Board Assembly is a key component in the Printed Circuit Board (PCB) manufacturing process. It is responsible for the assembly of all electronic components onto the PCB, ensuring the functionality and reliability of the final product. With advanced testing capabilities, a range of silk screen color options, and precise hole sizes, our PCB Board Assembly is the ideal choice for your manufacturing needs.

Testing Capabilities

Our PCB Board Assembly undergoes rigorous testing to ensure the highest quality and reliability. We utilize advanced testing techniques such as AOI (Automated Optical Inspection), X-Ray, and Flying Probe to detect any potential defects or errors in the assembly process. This allows us to catch any issues early on and ensure that the final product meets our strict quality standards.

Silk Screen Color Options

We offer a variety of silk screen color options for our PCB Board Assembly, including white, black, yellow, and more. This allows for customization and branding of the final product, making it stand out in the market. Our high-quality silk screen printing ensures clear and precise labeling of components on the PCB, improving the overall aesthetics and functionality of the product.

Precise Hole Sizes

Our PCB Board Assembly is capable of accommodating a minimum hole size of 0.2mm. This allows for the assembly of smaller and more complex electronic components, ensuring the PCB can support a wide range of devices and applications. With our advanced drilling technology, we guarantee precise and accurate hole sizes for optimal performance and functionality.

Material Options

We offer a variety of material options for our PCB Board Assembly, including FR4, aluminum, Rogers, and more. This allows for flexibility and customization to meet the specific needs of your product. Our materials are of the highest quality, ensuring durability and reliability in the final product.

The PCB Board Assembly Process

The PCB Board Assembly is a critical step in the overall Printed Circuit Board Manufacturing process. It involves the placement of electronic components onto the PCB, followed by soldering and testing. Our skilled technicians and advanced equipment ensure a smooth and efficient assembly process, resulting in high-quality and reliable PCBs for your products.

With our advanced testing capabilities, a range of silk screen color options, precise hole sizes, and a variety of material choices, our PCB Board Assembly is the perfect solution for your Printed Circuit Board Manufacturing needs. Contact us today to learn more about our services and how we can assist in bringing your electronic products to life.



Features:

  • Product Name: PCB Board Assembly
  • Board Thickness: 0.2mm-3.2mm
  • Silk Screen Color: White, Black, Yellow, Etc.
  • Surface Finish: HASL, ENIG, OSP, Etc.
  • Testing: AOI, X-Ray, Flying Probe, Etc.
  • PCBA Manufacturing Process
  • Circuit Board Assembly
  • Circuit Board Assembly Process


Technical Parameters:

Technical Parameters PCB Board Assembly
Min. Hole Size 0.2mm
Copper Thickness 1/2oz-4oz
Testing AOI, X-Ray, Flying Probe, Etc.
Board Thickness 0.2mm-3.2mm
Surface Finish HASL, ENIG, OSP, Etc.
Solder Mask Color Green, White, Black, Etc.
Min. Annular Ring 3mil
Assembly Type SMT, Through Hole, Mixed, Etc.
Min. Line Width/Space 3mil/3mil
Silk Screen Color White, Black, Yellow, Etc.

Key Words: Circuit Board Assembly, Printed Circuit Board Manufacturing, PCBA Manufacturing Process
