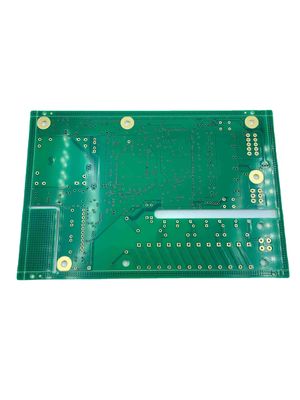

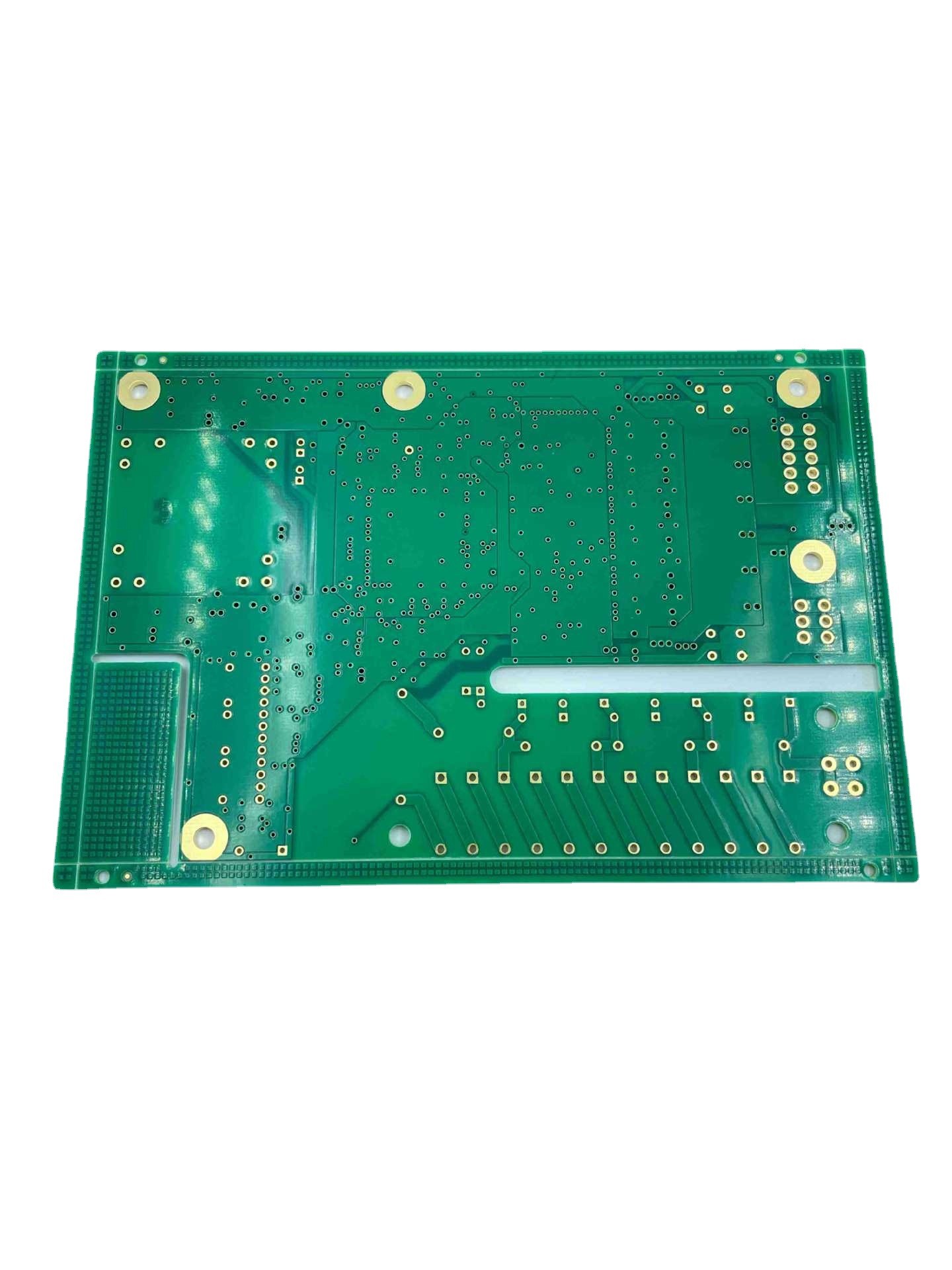

Multilayer custom printed circuit board HDI Assembly Design And Service

  • Multilayer custom printed circuit board HDI Assembly Design And Service
Place of Origin Guangdong, China
Brand Name JIETENG
Certification ISO/TS16949/RoHS/TS16949
Model Number PCB
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Inner vacuum packing, outer standard carton
Delivery Time 3-10 days for delivery
Payment Terms Negotiable
Supply Ability 100000 Square Meter/Square Meters per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Multilayer Custom Printed Circuit Board

,

HDI Multilayer Custom Printed Circuit Board

,

Multilayer HDI PCB Assembly
Leave a Message
Product Description

China Custom Print Circuit Board multilayer hdi pcb assembly pcba manufacturer oem ems Pcb Design And Service



Essential details
Model Number:
A (73)
Type:
pcba
Place of Origin:
Guangdong, China
Brand Name:
JIETENGPCB
Supplier Type:
Manufacturer
Copper Thickness:
0.5-6OZ
Product name:
PCB Board
Base Material:
FR4/ROGERS/Aluminum/High TG
Layer:
1-24layers
Board Thickness:
0.2-7.0mm
Surface Finishing:
HASLHASL Lead freeENIGGOLD Finger
Solder mask color:
Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte black
Silkscreen Color:
Black.White.Yellow
Min Hole Size:
0.15mm
MOQ:
1pcs







PCB Layers
1-24 Layers
Min Soldermask bridge
0.076mm
Max Panel Size
600mmx600mm
Insulating resistance
1E+12Ω(general)
Min Board Thickness
4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm
Board Thick : hole size
0.209027778
Min Trace Width
0.075mm
Shock heating
(3 times/10 second)
Min Trace Space
0.075mm
Wrap & twist
≤0.7%
Min Hole Size
0.20mm
Electric strength
＞1.3KV/mm
Hole wall thickness
0.025mm
Peel strength
1.4N/mm
Tolerance For PTH hole
±0.076mm
solder mask hardness
≥6H
Tolerance For NPTH hole
±0.05mm
Flammability
94V-0
Hole position tolerance
±0.05mm
Impedance control
±5%
Tolerance for outline
±0.15mm
Surface treatment
OSP, HASL, ENIG, Immersion tin, Immersion silver





Tags:

aluminum circuit board

earphone circuit board

printed circuit board fabrication
