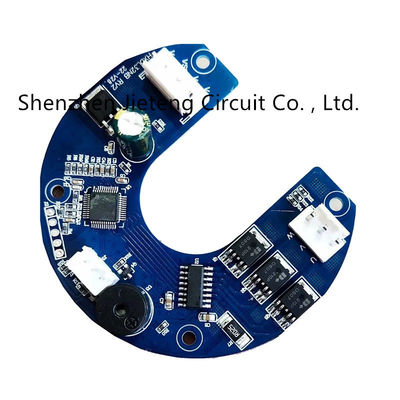

Custom Rogers PCB Fr4 Circuit Board PCB For Communication Base Station High Frequency Board

Place of Origin CHINA SHENZHEN
Brand Name JIETENG
Certification ISO/TS16949/RoHS/UL
Model Number Rogers High Frequency Board
Minimum Order Quantity 1pcs
Price 0.8-5USD/piece
Packaging Details Vacuum packing in blank cartons
Delivery Time 5-8 days delivery
Payment Terms T/T, Western Union,
Supply Ability 150000 Square Meter/Square Meters per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Copper 1OZ Silk Screen White
Min Hole Size(laser Hole) 0.1mm Immersion Gold Nickel 3-7um Au:1-5u''
Board Thickness 1.6mm,0.4~3mm Type Customizable,PCB Fabrication
Solder Mask Green. Red. Blue.,Yellow Usage Lithium Battery Packs,OEM Electronics,Electronic Products
High Light

Rogers fr4 circuit board

,

Custom fr4 circuit board

,

Custom rogers fr4 pcb

Leave a Message
Product Description

PCB circuit board mobile charging treasure PCBA program development

Essential details
Type:
Communication signal board PCBA
Place of Origin:
Guangdong, China
Brand Name:
PCB
Supplier Type:
Manufacturer
Copper Thickness:
0.5-6OZ
Product name:
PCB Board + Assembly
Base Material:
FR4/ROGERS/High TG
Layer:
1-24layers
Board Thickness:
0.2-7.0mm
Surface Finishing:
HASLHASL Lead freeENIGGOLD Finger
Solder mask color:
Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte black
Silkscreen Color:
Black.White.Yellow
Min Hole Size:
0.15mm
















































PCB Layers
1-24 Layers
Min Soldermask bridge
0.076mm
Max Panel Size
600mmx600mm
Insulating resistance
1E+12Ω(general)
Min Board Thickness
4 Layers 0.40mm, 6 Layers 0.80mm, 8 Layers 1.00mm, 10 Layers 1.20mm
Board Thick : hole size
0.209027778
Min Trace Width
0.075mm
Shock heating
(3 times/10 second)
Min Trace Space
0.075mm
Wrap & twist
≤0.7%
Min Hole Size
0.20mm
Electric strength
>1.3KV/mm
Hole wall thickness
0.025mm
Peel strength
1.4N/mm
Tolerance For PTH hole
±0.076mm
solder mask hardness
≥6H
Tolerance For NPTH hole
±0.05mm
Flammability
94V-0
Hole position tolerance
±0.05mm
Impedance control
±5%
Tolerance for outline
±0.15mm
Surface treatment
OSP, HASL, ENIG, Immersion tin, Immersion silver
