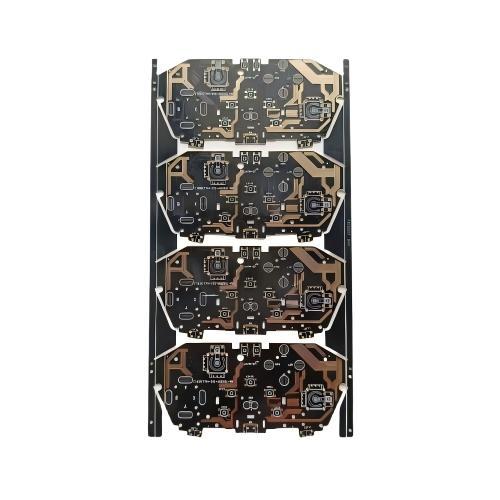

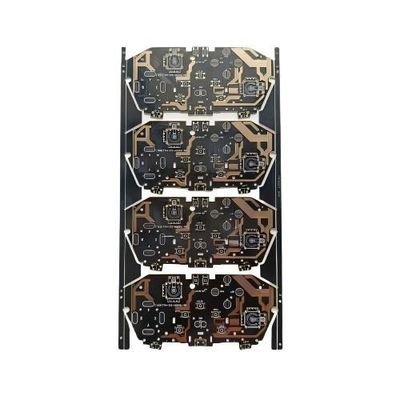

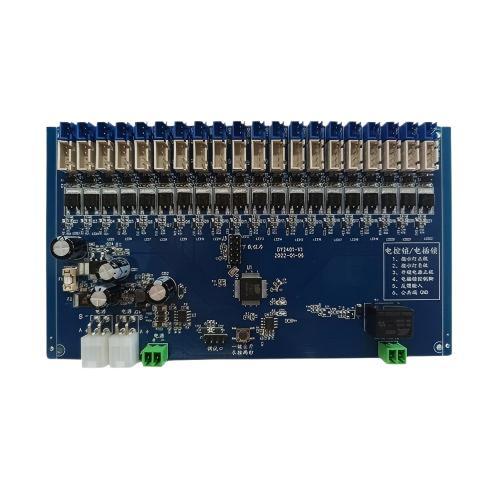

Printed Circuit Boards With Blue Solder Mask, Commonly Used In Automotive Electronics

Product Description:

Jieteng Circuit's SMT PCB boards are generally double-sided and multi-layer designs, which improves the flexibility and efficiency of circuit layout and design. Multi-layer PCB boards can accommodate complex circuits and components and are a must for high-performance electronic devices.

In terms of surface treatment, SMT PCB boards offer a variety of options: HASL, immersion silver, immersion tin, ENIG, etc. Each surface treatment has its own advantages and characteristics to meet the needs of different electronic devices. HASL is a cost-effective and reliable surface treatment, while immersion silver has excellent conductivity and oxidation resistance. On the other hand, immersion tin is known for its flat surface and suitability for fine-pitch components, while ENIG has good corrosion resistance and soldering performance, making it highly used.

Another key feature of the SMT PCB board is its 2 ounce (about 2 ounces) copper thickness. Copper thickness plays a vital role in determining the current carrying capacity, impedance control, and overall reliability of the PCB. With a copper thickness of 2 ounces, this PCB board has excellent conductivity and durability, making it ideal for demanding applications where performance is paramount.

Whether your project is communications electronics, industrial equipment, or automotive systems, SMT PCB boards provide a solid foundation for building reliable and efficient electronic devices.

Features:

• Product Name: SMT PCB Board
• Solder Mask Color: Blue.Green
• Min Hole Size: 0.25mm
• Copper Thickness: 2oz
• Silkscreen Color: White
• Board Thickness: 1.6mm

Technical Parameters:

Applications:

The SMT PCB board of Jieteng Circuit is a high-quality multi-layer circuit board suitable for various product applications and scenarios.

With its four-layer design and 2 ounces of copper thickness, this circuit board is very suitable for various industries such as telecommunications, automotive, industrial equipment electronics, etc. The SMT PCB board of Jieteng Circuit is manufactured in Shenzhen, China and has passed UL IATF16949 certification, ensuring first-class quality and reliability.

There is no minimum order quantity for Jieteng SMT PCB boards. Whether you are doing a small project or a large-scale one, our daily supply capacity is 10,000 pieces, and the delivery time is 17 to 20 working days. We can flexibly and efficiently arrange production to meet your project deadlines. At the same time, the production unit price is between US$20 and US$100, and the affordable price can save more costs for your project.

FAQ:

Q1. What information is needed for PCB quotation?

A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )

Q2. What file formats are accepted for PCB production?

A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.

Q3. Are my files safe?

A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.

Q4. What is the minimum order quantity?

A: Our company does not have a minimum order quantity. We are able to flexibly handle small and large batches.

Q5. How much is the shipping cost?

A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
