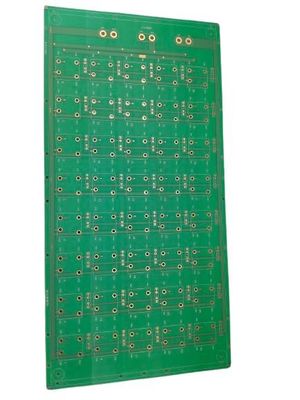

Green Solder Mask Lithography Machine PCB Minimum Aperture 0.25 mm 6oz Copper Thickness

Product Description:

Green solder mask provides excellent protection for the board surface and the electronic components on it, and helps prevent solder bridges, short circuits, and other common problems that can occur when using electronic boards.
With a copper thickness of 6 oz, thicker copper allows a lower resistance path for current flow, which helps reduce voltage drops and other issues, making SMT PCB boards a great choice for power electronics, motor control, and other high current applications.

This SMT PCB board is available in three different surface finishes: HASL, Immersion Silver, and Immersion Tin. HASL (Hot Air Solder Leveling) treatment is a cost-effective option that provides good solderability and protection for the board surface. Immersion Silver treatment has excellent corrosion resistance and is an excellent choice for designs that require a long service life. Immersion Tin treatment is an excellent choice for designs that require a flat surface and good solderability.

Features:

• Product Name: SMT PCB Board
• Type: Printed Circuit Board
• Layer: 4
• Solder Mask Color: Green
• Surface Finish:
  • HASL
  • Immersion Silver
  • Immersion Tin
• Silkscreen Color: White
• Min Hole Size: 0.25mm

Technical Parameters:

Applications:

The SMT PCB is manufactured in Shenzhen, China, a hub for electronic PCBs, and meets high quality and reliability standards. It is UL IATF16949 certified and meets all necessary safety and performance standards, so it has a wide range of applications, and it can be used in a variety of scenarios, including the automotive, aerospace, and telecommunications industries.

With a minimum order quantity of only 100 pieces, this product is perfect for both small and large projects. It has a delivery time of 17-20 working days and a supply capacity of 10,000 pieces per day, making it easy for you to get the products you need when you need them.

FAQ:

Q1: What is the brand name of the SMT PCB board?

A1: The brand name of the SMT PCB board is Jieteng Circuit Co., Ltd.

Q2. What file formats are accepted for PCB production?

A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.

Q3. Are my files safe?

A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.

Q4: What is the certification of the SMT PCB board?

A4: The certification of the SMT PCB board is UL IATF16949.

Q5. How much is the shipping cost?

A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know
