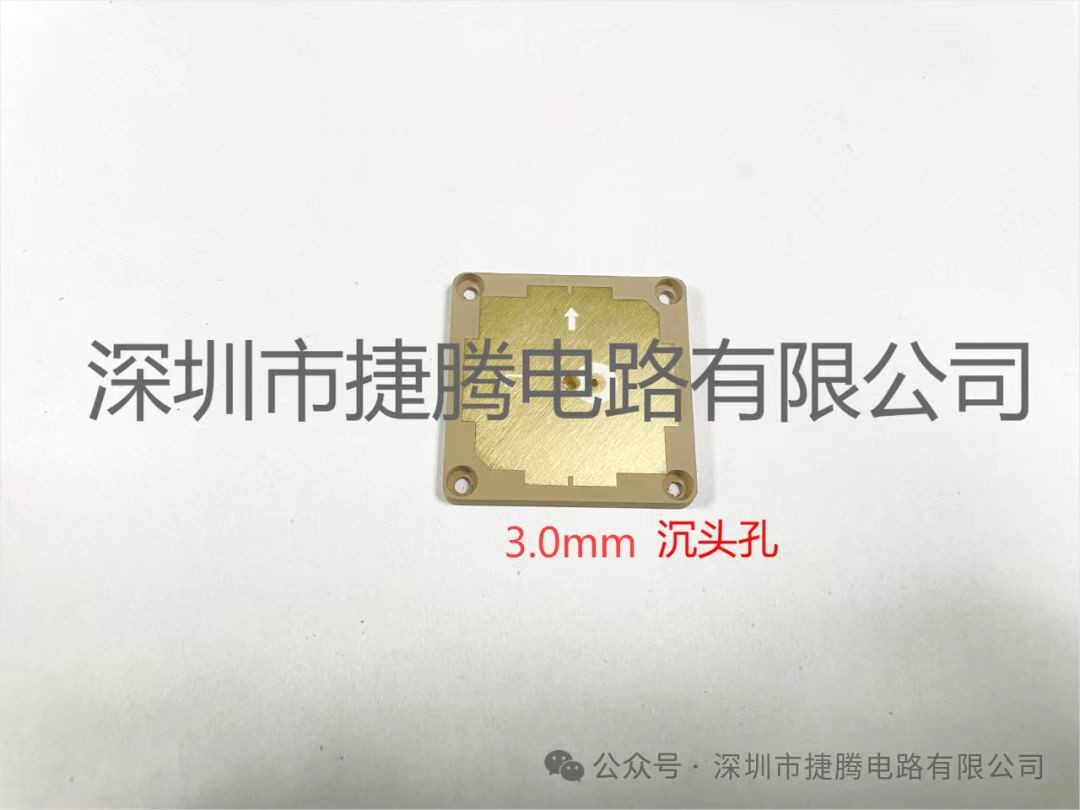

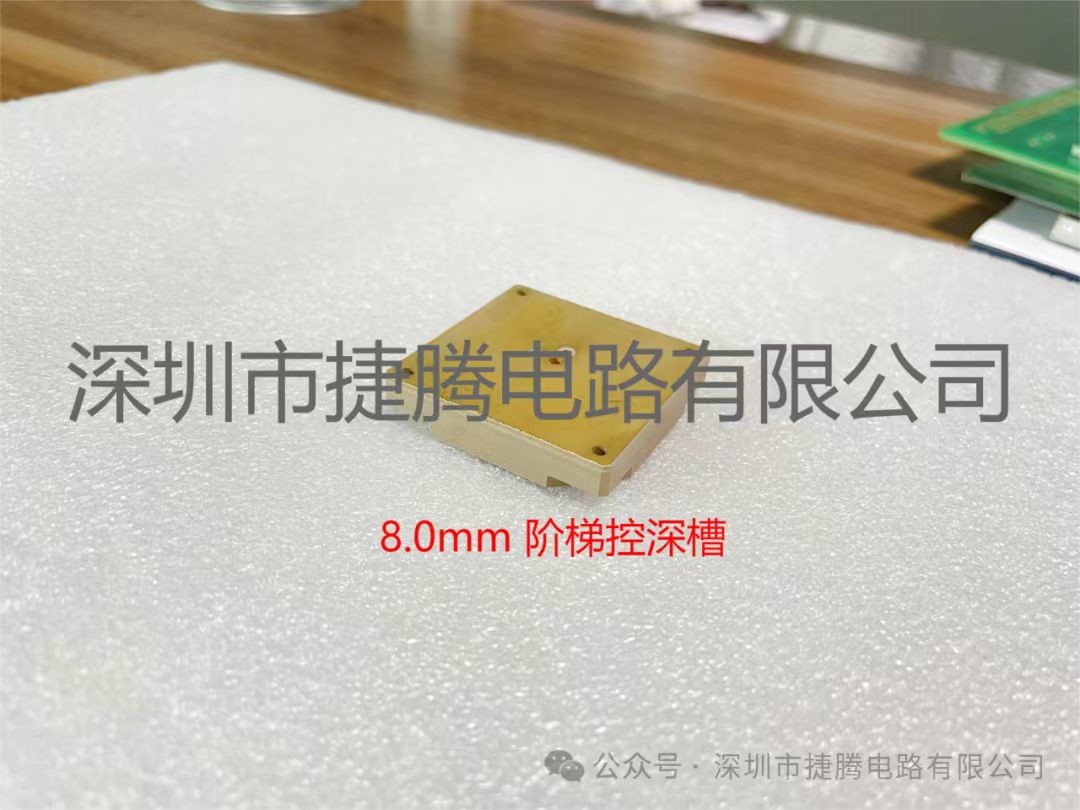

2-Layer Rogers4350B Circuit Board For Electronic Communications
| Place of Origin | China Shen |
|---|---|
| Brand Name | JIETENG |
| Certification | UL IATF16949 |
| Model Number | High Frequency PCBs |
| Minimum Order Quantity | Negotiable |
| Price | 9-15USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 8-11 working days |
| Payment Terms | Negotiable |
| Supply Ability | 500PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Min Trace Width/Space | 4/4mil | Silk Screen Color | White |
|---|---|---|---|
| Material | Rogers4350B，4003C,5880 | Copper Thickness | 1OZ |
| Packaging | Vacuum Packing, Bubble Bag, Carton Box, Etc. | Layer | 2 |
| Impedance Control | ±10% | Min Hole Size | 0.2mm |
| Highlight | 2 Layer Circuit Board,Electronic Communications Circuit Board,Rogers4350B Circuit Board |
||
Product Description
Product Description:
Our high frequency PCBs are made of Rogers 4350B, 4003C and 5880, which are known for their excellent dielectric properties and low loss tangent, making them ideal for applications such as communication base stations where signal transmission is important. In addition to high performance and high precision, our high frequency PCBs are not only cost-effective but also very reliable. Designed to provide unparalleled performance in high frequency applications, and made of the highest quality materials to ensure maximum durability and service life.
Technical Parameters:
| Product Attribute | Value |
| Product Name | High Frequency PCBs |
| Material | Rogers4350B,4003C,5880 |
| Copper Thickness | 1OZ |
| Impedance Control | ±10% |
| Packaging | Vacuum Packing, Bubble Bag, Carton Box, Etc. |
| Surface Finish | ENIG |
| Min Hole Size | 0.2mm |
| Board Thickness | 0.254mm~1.6mm |
| Min Trace Width/Space | 4/4mil |
| Silk Screen Color | White |
| Layer | 2 |
| Product Type | High-Performance Printed Boards, High-Speed Printed Boards |
Support and Services:
Our high-frequency PCB product technical support and services include:
High-frequency PCB drawing processing and design
Customized solutions according to customer requirements
Advanced testing and verification to ensure optimal performance
Assistance with material selection and supply chain management
FAQ:
Q1. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc.
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4: Are these PCBs certified?
A: Yes, these PCBs are UL IATF16949 certified.
Q5: What is the supply ability of these PCBs?
A: The supply ability of these PCBs is 1000pcs/day.
