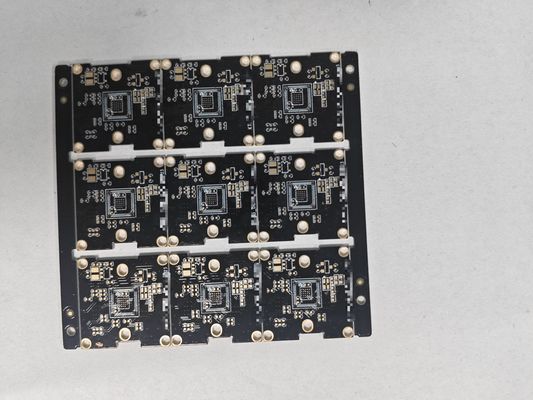

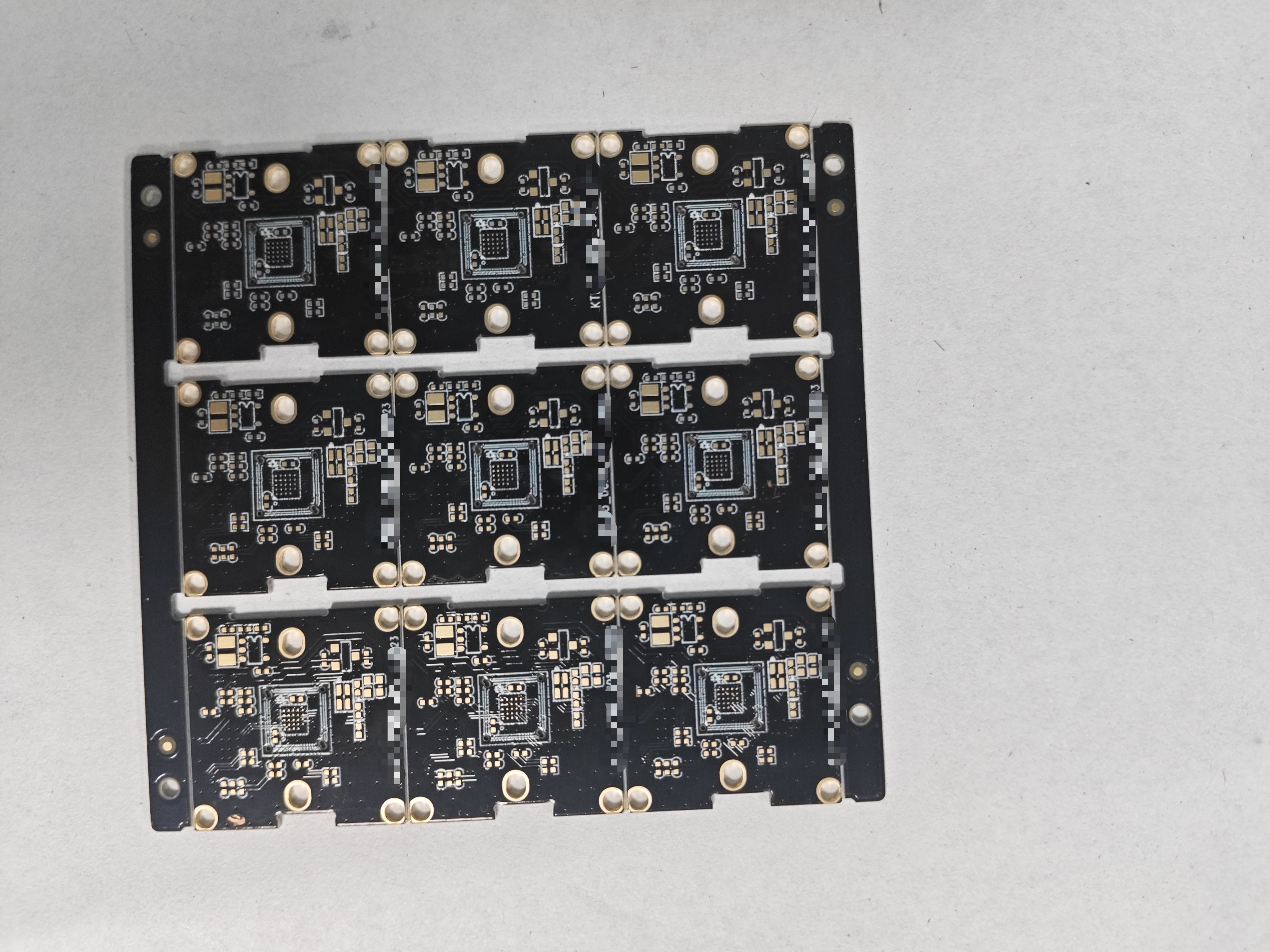

2 Layer Rogers Board With ENIG Treatment For Microwave Communication Electronics

Place of Origin China Shen
Brand Name JIETENG
Certification UL IATF16949
Model Number High Frequency PCBs
Minimum Order Quantity 20 pcs
Price 2-15USD/piece
Packaging Details Blank carton, vacuum packed
Delivery Time 10-16 working days
Payment Terms Negotiable
Supply Ability 1000PCS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Layer 2 Surface Finish ENIG
Min Hole Size 0.2mm Material Rogers4350B,4003C,5880
Packaging Vacuum Packing, Bubble Bag, Carton Box, Etc. Impedance Control ±10%
Solder Mask Color Green Board Thickness 0.254mm~1.6mm
Highlight

Microwave Rogers Board

,

2 Layer Rogers Board

,

ENIG Treatment Rogers Board

Leave a Message
Product Description

Product Description:

Our high-performance printed circuit board designs use Rogers high-frequency materials such as Rogers4350B, 4003C and 5880 with a copper thickness of 1OZ, ensuring that the board can handle high-frequency signals without any loss of signal quality.
The surface finish of our PCBs is ENIG, which provides a flat and smooth surface that is conducive to high-frequency applications. It has a ±10% impedance control function. This feature ensures consistent impedance across the board and helps maintain signal integrity. We design a board thickness range of 0.254mm~1.6mm for high-frequency PCBs, making them suitable for a wide range of applications.



Features:

  • Product Name: High Frequency PCBs
  • Packaging: Vacuum Packing, Bubble Bag, Carton Box, Etc.
  • Solder Mask Color: Green
  • Impedance Control: ±10%
  • Min Trace Width/Space: 4/4mil
  • Min Hole Size: 0.2mm
  • High-Performance Printed Boards

Technical Parameters:

Attribute Value
Product Name High-Speed Printed Boards
Layer 2
Copper Thickness 1OZ
Material Rogers4350B, 4003C, 5880
Board Thickness 0.254mm~1.6mm
Solder Mask Color Green
Silk Screen Color White
Min Trace Width/Space 4/4mil
Min Hole Size 0.2mm
Impedance Control ±10%
Packaging Vacuum Packing, Bubble Bag, Carton Box, Etc.


Applications:

Our high-frequency PCBs are suitable for various occasions and scenarios. They are widely used in aerospace industry, military, medical equipment, telecommunications and other high-tech fields. High-quality materials, advanced technology and strict quality control make our high-frequency PCBs reliable and safe for critical applications.



FAQ:

Q: Where is this product manufactured?

A: This product is manufactured in Shenzhen, China.

Q: What certification does this product have?

A: This product has UL IATF16949 certification.

Q: What is the supply capacity of this product?

A: The supply capacity of this product is 1000 pieces/day.

Q. How much is the shipping cost?

A: The shipping cost depends on the destination, weight, and packaging size of the goods. Please let us know if you need us to give you a quote.
