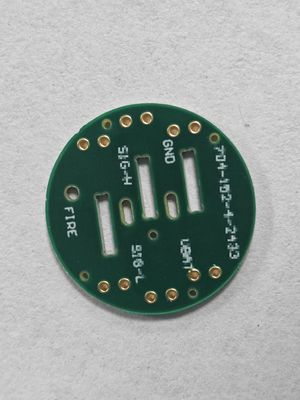

Customized Green Halogen Free PCB Assembly Tinning Surface Treatment 3.0MM for Drones

Place of Origin China Shen
Brand Name JIETENG
Certification UL IATF16949
Model Number Prototype PCB Assembly
Minimum Order Quantity 10 PCS
Price 0.8-6USD/piece
Packaging Details Blank carton, vacuum packed
Delivery Time 8-11 working days
Payment Terms T/T, Western Union,
Supply Ability 10000PCS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Finish HASL Immersion Tin Copper Weight 1oz
Solder Mask Color Green Halogen Free Test Method Flying Probe Test
PCB Thickness 3.0mm PCB Material FR4 HF Material
PCB Size 100mm*120mm Silkscreen Color White
Highlight

3.0MM PCB Assembly

,

Customized Green PCB Assembly

,

Tinning Surface Treatment PCB Assembly

Leave a Message
Product Description

Product Description:

The drone camera PCB is a printed circuit board assembly or PBA. It is made of FR4 HF material, which is a high-performance material used for PCBs. The PCB thickness is 3.0mm, which is the standard thickness of most PCBs. The minimum hole size of the drone camera PCB is 0.35mm, which is the smallest hole size that can be drilled on the PCB. This makes it possible to assemble small components on the PCB, which is essential for the functionality of the drone camera.

The surface finish of the drone camera PCB is HASL immersion tin. HASL or hot air solder leveling is a process that applies a thin layer of solder on the PCB. Immersion tinning is a process that applies a thin layer of tin on the PCB. The combination of these two processes provides a smooth surface for the components to be assembled. This surface finish is ideal for the drone camera PCB as it provides a reliable connection between the components and the PCB.



Features:

  • Product Name: Prototype PCB Assembly
  • Test Method: Flying Probe Test
  • Surface Finish: HASL Immersion Tin
  • PCB Material: FR4 HF Material
  • PCB Layer: 8-Layer
  • Silkscreen Color: White

Our Prototype PCB Assembly is a high-quality printed circuit board assembly manufactured with the highest standards in PCB assembly manufacturing. It has 8 PCB layers and is tested using advanced flying probe test methods. The surface finish is a combination of HASL Immersion Tin, resulting in a durable and long-lasting PCB material.



Applications:

The prototype PCB assembly is made of high-quality FR4 HF material to ensure stability and durability. The PCB thickness is 3.0mm to withstand rigorous testing and prototyping. The minimum aperture of 0.35mm is perfect for those who want to create complex designs and test new ideas.

The surface treatment of HASL immersion tin ensures that the PCB has a smooth and uniform surface, which is essential for proper electrical connection. The white silkscreen color clearly and easily marks components and connections.

Our prototype PCB assembly manufacturing service is UL IATF16949 certified, ensuring that our products meet the highest safety and quality standards.





FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is JIETENG Circuit Co., Ltd.

Q: Where is this product manufactured?

A: This product is manufactured in Shenzhen, China.

Q: What is the certification of this product?

A: This product is UL IATF16949 certified.

Q. What file formats are accepted for PCB production?

A: Gerber file: CAM350 PCB file: Protel 99SE, PADS, CAD, Altium Designer.

Q: What is the minimum order quantity of this product?

A: The minimum order quantity of this product is 10 pieces.
