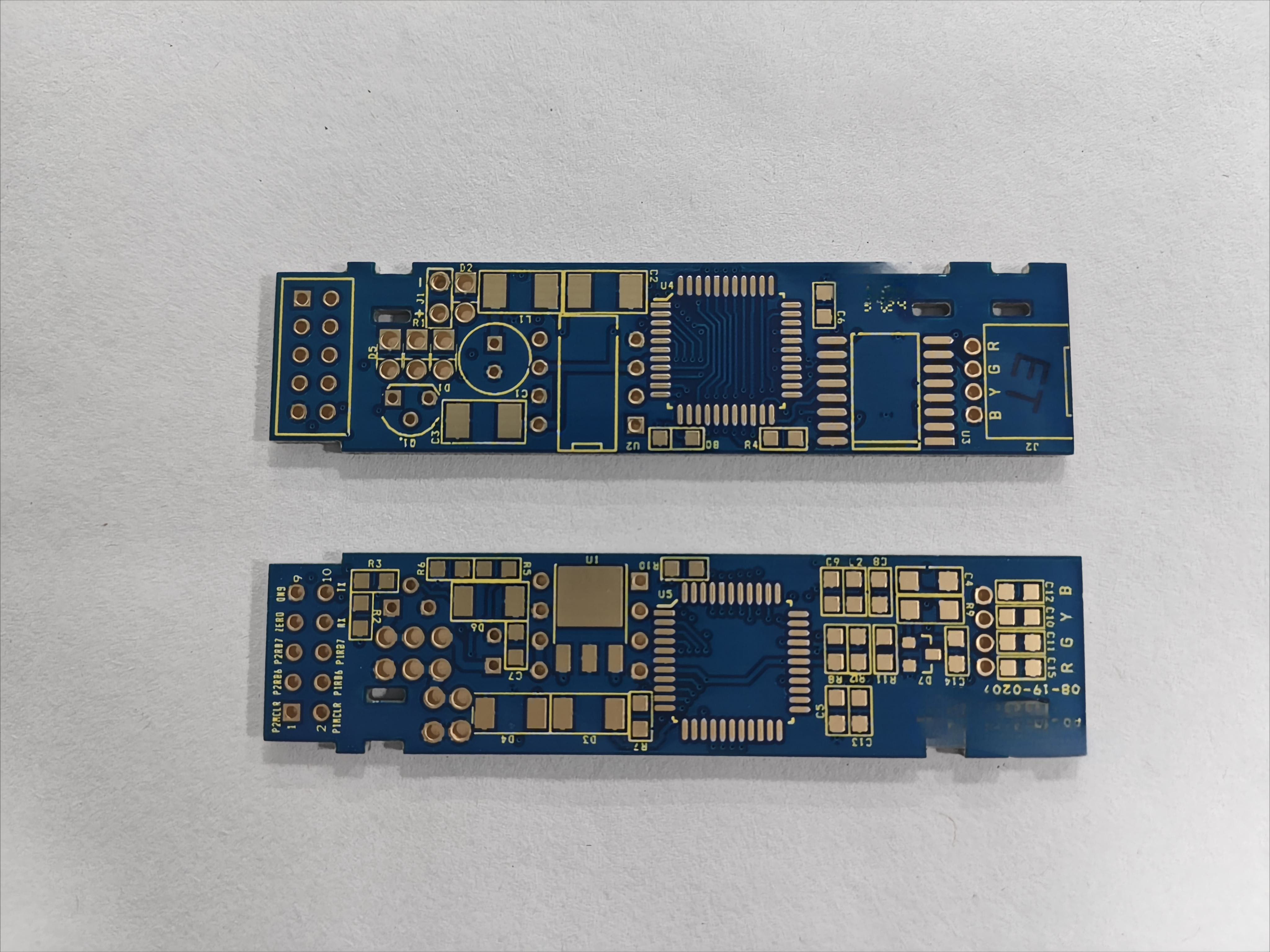

1.5mm High Frequency PCB Assembly Rogers And KB Board Blue Solder Mask
| Place of Origin | China Shenzhen |
|---|---|
| Brand Name | JIETENG |
| Certification | ISO/TS16949/RoHS/UL |
| Model Number | High frequency mixed pressure PCB |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 8-11 working days |
| Payment Terms | Negotiable |
| Supply Ability | 10000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Min. Line Width/Space | 4mil/4mil | Product Name | High Frequency Mixed Pressure Pcb |
|---|---|---|---|
| Board Thickness | 1.5mm | Min. Hole Size | 0.2mm |
| Silk Screen Color | Black | Material | KB, Rogers |
| Testing | AOI, X-Ray, Flying Probe, Etc. | Copper Thickness | 3oz |
| Highlight | 1.5mm High Frequency PCB,Rogers PCB Assembly,Blue Solder Mask PCB Assembly |
||
Product Description
Product Description:
Our PCB board assembly products have a minimum hole diameter of 0.2mm and use the highest quality materials including KB and Rogers. This means you can be confident that your board will last, no matter what conditions it is used in.
The copper thickness of our PCB boards is 3 oz, ensuring your board is strong and durable
Features:
- Product Name: High Frequency Mixed Pressed PCB
Board Thickness: 1.5mm
Solder Mask Color: Blue
Minimum Line Width/Spacing: 4mil/4mil
Test: AOI/Flying Probe
PCB assembly is a critical part of the PCBA manufacturing process, and our PCB assembly process ensures that all components are properly placed and soldered to the PCB board assembly
Customization:
Our PCBs are made of high-quality materials such as KB and Rogers, and our surface finish options include HASL and ENIG, ensuring durability and reliability.
We offer a variety of assembly types including SMT, through-hole, and hybrid, with PCB copper thickness of 3oz and board thickness of 1.5mm, ensuring stability and efficiency.
Our PCBA manufacturing process is completed in our factory in China, ensuring a high level of quality control and cost-effectiveness.
Support and Services:
Our PCB Board Assembly products come with comprehensive technical support and services to ensure that your product functions optimally. Our team of experienced engineers are available to provide you with technical assistance and troubleshooting services to resolve any issues that may arise.
FAQ:
Q: What is the model of Jeteng's PCB assembly products?
A: The model of Jeteng's PCB assembly products is high-frequency mixed-pressure PCB.
Q: Can Jeteng provide customized PCB assembly products?
A: Yes, Jeteng can provide customized PCB assembly products according to customer requirements and specifications.
Q: How long is the delivery time of Jeteng's PCB assembly products?
A: The delivery time of Jeteng's PCB assembly products depends on the quantity and complexity of the order. Please contact us for more details.
Q. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
