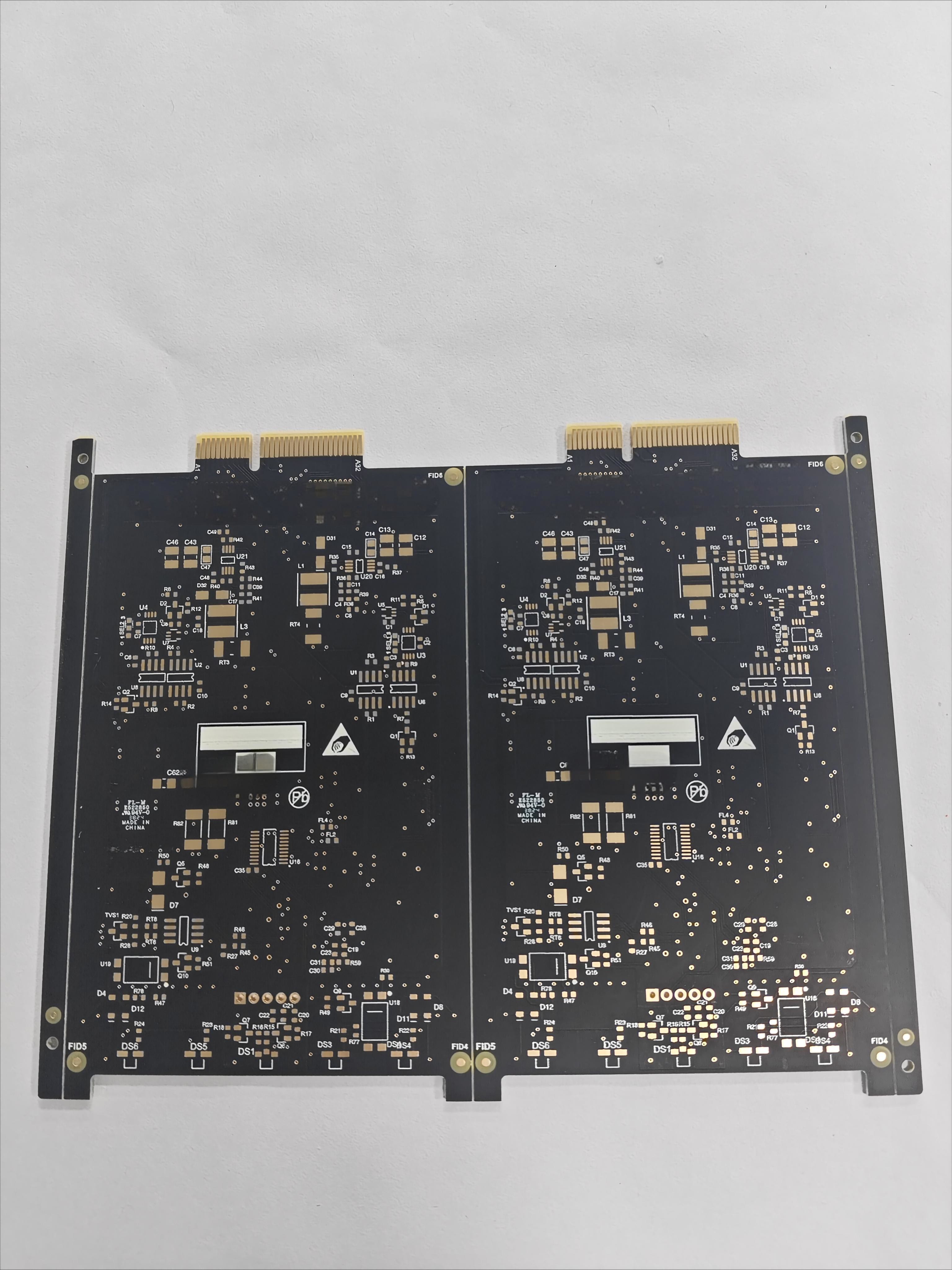

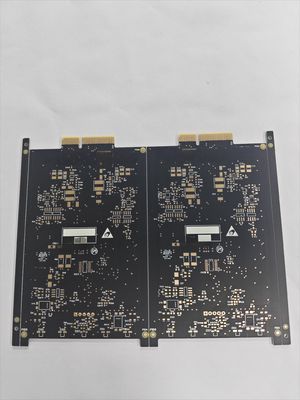

Black Immersion Silver 6-Layer Multi-Layer Circuit Board For CCTV Camera
| Place of Origin | China Shenzhen |
|---|---|
| Brand Name | JIETENG |
| Certification | UL ROHS TS16949 |
| Model Number | Multilayer PCB Fabrication |
| Minimum Order Quantity | 20 pcs |
| Price | 1-9.9USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 8-11 working days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Finish | Immersion Silver | Board Thickness | 2.0mm |
|---|---|---|---|
| Impedance Control | Yes | Silkscreen Color | White |
| Solder Mask Color | Black | Layer Count | 6-Layer |
| Min. Hole Size | 0.25mm | Material | High TG FR4, Halogen Free, Rogers, |
| Highlight | 6-Layer Circuit Board,Multi-Layer Circuit Board,Circuit Board For CCTV Camera |
||
Product Description
Product Description:
Our multi-layer PCB is designed using the latest technology and advanced manufacturing techniques, with a thickness of 2.0mm, 2OZ copper thickness, the black solder mask provides a layer of insulation to help prevent damage from electrical shorts and other hazards that may arise during use, it is rugged and durable to withstand the harshest conditions.
Features:
- Product Name: Multilayer PCB Fabrication
- Min. Hole Size: 0.25mm
- Board Thickness: 2.0mm
- Surface Finish: Immersion Silver
- Layer Count: 6-Layer
- Silkscreen Color: White
Our Multilayer PCB Fabrication service offers top-quality Multi-Layer PCB Manufacturing, Multi-Layer Printed Circuit Board Production, and Multi-Layer PCB Component Assembly. With a minimum hole size of 0.25mm and a board thickness of 2.0mm, our boards are built to last. The immersion silver finish and white silkscreen color make for a sleek and professional look.
Customization:
Our product customization services allow for Multi-Layer PCB Component Assembly, Multi-Layer Printed Circuit Board Production, and Multi-Level Printed Circuit Board Fabrication. Contact us today to discuss how we can customize our Multilayer PCB Fabrication product to meet your specific needs.
FAQ:
Q: What is the brand name of the multi-layer PCB manufacturing product?
A: The brand name is JIETENG.
Q: What is the model of the multi-layer PCB manufacturing product?
A: The model is 6-layer multi-layer circuit board CCTV camera
Q: Where is the multi-layer PCB manufacturing product manufactured?
A: Made in Shenzhen, China.
Q: How many layers can be manufactured at most?
A: We can manufacture up to 20 layers for this product.
Q: What is the typical lead time for manufacturing?
A: The lead time varies depending on the complexity of the design, but it is usually between 5 and 15 working days.
Q. What information is required for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, mask and silk screen color, etc. )
Q. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
