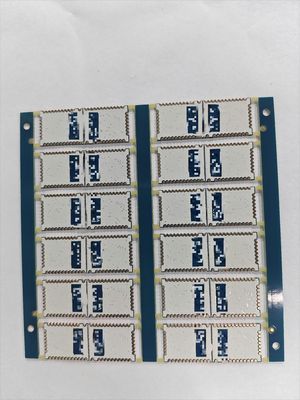

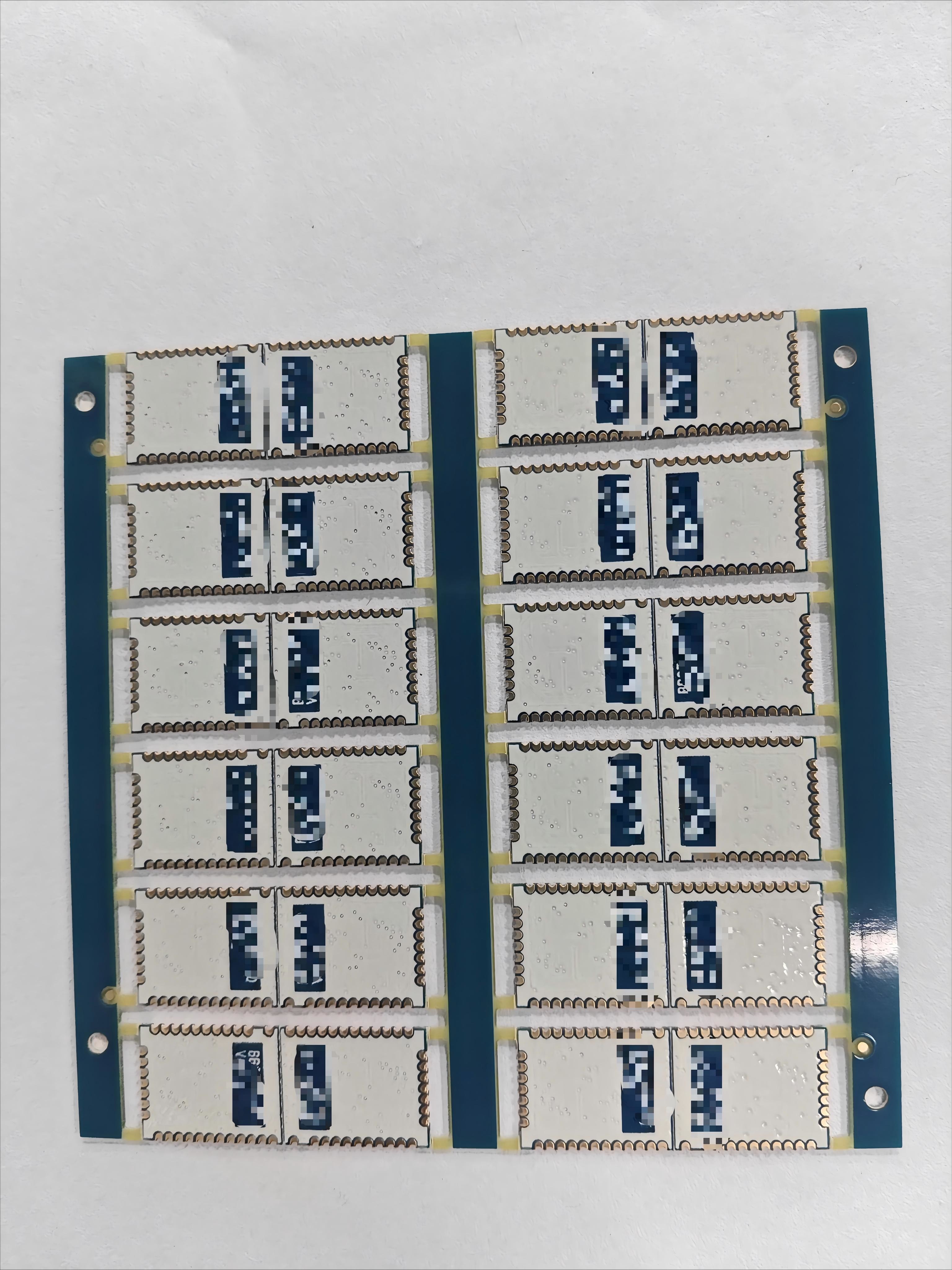

2-Layer High Frequency PCB ROGERS 4003C Gold Plated Blue Solder Mask PCB
| Place of Origin | China |
|---|---|
| Brand Name | JIETENG |
| Certification | UL ROHS SGS TS16949 |
| Model Number | High Frequency PCBs |
| Minimum Order Quantity | Negotiable |
| Price | 1-9.9USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 10-15 working days |
| Payment Terms | Negotiable |
| Supply Ability | 10000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Layer | 2 | Surface Finish | ENIG |
|---|---|---|---|
| Silk Screen Color | White | Copper Thickness | 1OZ |
| Solder Mask Color | Green | Impedance Control | ±10% |
| Min Trace Width/Space | 4/4mil | Min Hole Size | 0.2mm |
| Highlight | Blue Solder Mask High Frequency PCB,2-Layer High Frequency PCB,Gold Plated High Frequency PCB |
||
Product Description
Product Description:
Our high-speed printed circuit boards are designed with ±10% impedance control in blue solder mask color to ensure precise signal transmission. With a minimum aperture of 0.2mm and a minimum trace width and spacing of 4/4mil, they are ideal for high-density applications.
Our high-frequency PCBs are not only reliable but also cost-effective. Our high-speed printed circuit boards are very competitively priced and are an excellent choice for customers seeking a balance between performance and cost.
Features:
- Product Name: High Frequency PCBs
- Board Thickness: 0.8mm
- Impedance Control: ±10%
- Layer: 2
- Min Hole Size: 0.2mm
- Min Trace Width/Space: 4/4mil
Our High Frequency PCBs are ideal for high-speed circuit boards, high-frequency circuit boards, and high-performance printed boards.
Applications:
One of the main uses of high-frequency PCBs is in the telecommunications industry. They are often used in high-speed data transmission, aerospace and defense industries, such as switches, modems, radar systems, and satellite communications. In addition, the medical industry and the automotive industry also benefit from the use of high-frequency PCBs, and they are essential components in any device that requires high-speed data transmission and high-performance functions.
JIETENG's high-frequency PCBs have ±10% impedance control, ensuring consistent and reliable performance. They are packaged in vacuum packaging, bubble bags, and cartons for safe transportation. The minimum aperture of these boards is 0.2 mm and they come with a blue solder mask. The copper thickness of these boards is 1OZ, ensuring that they are strong and durable.
Customization:
JIETENG offers customization services for their High-Frequency Printed Boards, also known as High-Speed Circuit Boards. These High Frequency PCBs are made with Rogers4350B material and have a copper thickness of 1OZ. The surface finish is ENIG and the solder mask color is blue.
Our High Frequency PCBs are made in China and can be packaged to your specifications, including options such as vacuum packing, bubble bag, and carton box. Contact us today to discuss your High Frequency PCB customization needs.
FAQ:
Q: What is the brand name of high-frequency PCB?
A: The brand name of high-frequency PCB is JIETENG.
Q: What is the model of high-frequency PCB?
A: The model of 2-layer high-frequency Rogers 4003C gold-plated blue solder mask PCB
Q: Where is high-frequency PCB manufactured?
A: High-frequency PCB is manufactured in Shenzhen, China.
Q: What are the characteristics of high-frequency PCB?
A: High-frequency PCB has excellent high-frequency performance, low dielectric loss and good heat dissipation.
Q: What applications are high-frequency PCB suitable for?
A: High-frequency PCB is suitable for applications such as wireless communication, satellite communication, radar system and microwave system.
