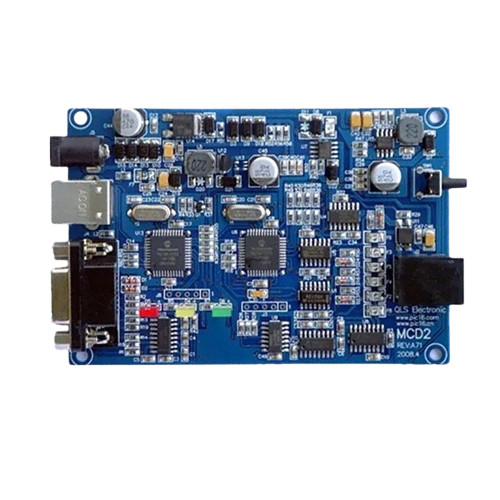

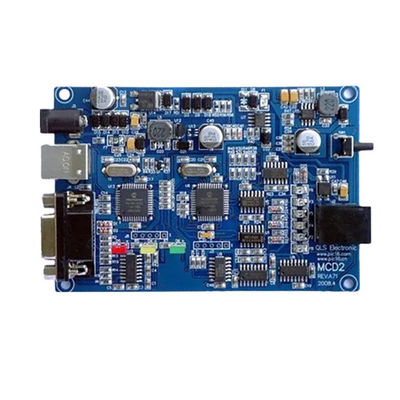

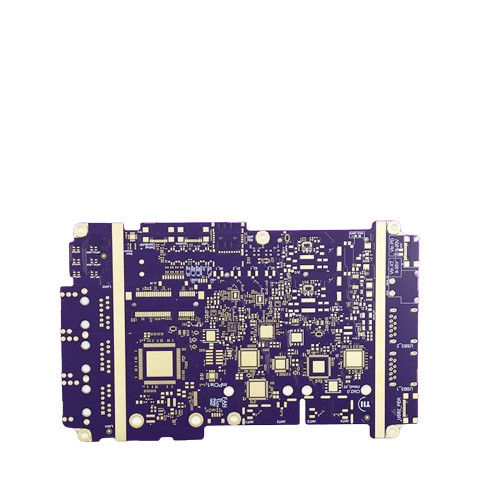

Precision Custom Double-Sided PCB With 1 To 8oz Copper 4.0mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | JIETENG |
| Certification | ISO/TS16949/RoHS/UL |
| Model Number | SMT PCB Board |
| Minimum Order Quantity | 5 |
| Price | 1-16USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 10-16 working days |
| Payment Terms | Negotiable |
| Supply Ability | 1000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Copper Thickness | 1~8oz | Surface Finish | HASL,Immersion Silver, Immersion Tin |
|---|---|---|---|
| Assembly Service | Yes | Material | FR4 |
| Layer | 2~8 | Silkscreen Color | White |
| Min Hole Size | 0.15mm | Impedance Control | Yes |
| Board Thickness | 0.4--6mm | Application | Electronics Device,Consumer Electronics,Communications,Player Products |
| Item | ODM OEM Pcb Board | ||
| High Light | 1 To 8oz Copper PCB,Custom Double-Sided PCB,4.0mm Thickness Double-Sided PCB |
||
Product Description
Product Description:
The SMT PCB Board comes with white silkscreen color, which makes it easy to read and identify the components on the board. This feature is especially useful when you are working with complex circuits or circuits with a large number of components.
Another great feature of the SMT PCB Board is its impedance control. This feature ensures that the signals on your circuit are transmitted with the correct impedance, which is crucial for the proper functioning of your circuit.
The SMT PCB Board comes with three different surface finish options: HASL, Immersion Silver, and Immersion Tin. The HASL option is a cost-effective and popular choice for PCBs. The Immersion Silver option provides better protection against oxidation and is ideal for high-frequency circuits. The Immersion Tin option is also a cost-effective choice and provides good protection against oxidation.
The SMT PCB Board comes with a copper thickness range of 1~8oz, which makes it suitable for a wide range of electronic applications. The thickness of the copper layer determines the current carrying capacity of the circuit, and the SMT PCB Board provides a range of options to choose from.
Overall, the SMT PCB Board is a great choice for anyone looking for a reliable and high-quality Printed Circuit Board. With its durable FR4 material, white silkscreen color, impedance control, and surface finish options, this PCB is perfect for all kinds of electronic projects. So why wait? Order your SMT PCB Board today and start building your next electronic project!
Features:
- Product Name: SMT PCB Board
- Layer: 2~8
- Solder Mask Color: Green
- Min Hole Size: 0.15mm
- Impedance Control: Yes
- Assembly Service: Yes
- Used for: Electronic Circuit Board, Integrated Circuit Board
Applications:
With impedance control, the SMT PCB Board is ideal for high-frequency electronic circuit board applications that require accurate signal transmission. The board's surface finish options, which include HASL, Immersion Silver, and Immersion Tin, make it suitable for use in various environments and scenarios. The white silkscreen color ensures clear and legible labeling, making it easy to identify different components on the board.
The SMT PCB Board is perfect for use in printed circuit board applications in various industries, including aerospace, medical, automotive, and telecommunications. The board's high-performance capabilities make it suitable for use in applications that require high-speed data transfer, such as network switches, routers, and servers.
Additionally, the SMT PCB Board is also suitable for use in power supply applications, such as DC-DC converters, AC-DC converters, and inverters. The board's high thermal conductivity and low thermal expansion make it an ideal choice for applications that require high power dissipation.
In conclusion, JIETENG's SMT PCB Board is a versatile product that is suitable for a wide range of electronic circuit board applications. Its high-quality construction, impedance control, and surface finish options make it an excellent choice for high-performance applications that require accurate signal transmission and power dissipation.
Customization:
Support and Services:
Our SMT PCB Board product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and issue resolution
- Firmware updates and upgrades
- Training and education on product features and functionality
- Warranty and repair services
- Customization and modification services
Our team of experienced technicians is dedicated to providing reliable and efficient support to ensure that our customers get the most out of their SMT PCB Board product.
FAQ:
Q: What is the brand name of this product?
A: The brand name is JIETENG.
Q: What is the model number of this product?
A: The model number is SMT PCB Board.
Q: Where is the product made?
A: The product is made in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 5.
Q: Is this product suitable for SMT assembly?
A: Yes, this product is specifically designed for SMT assembly.
