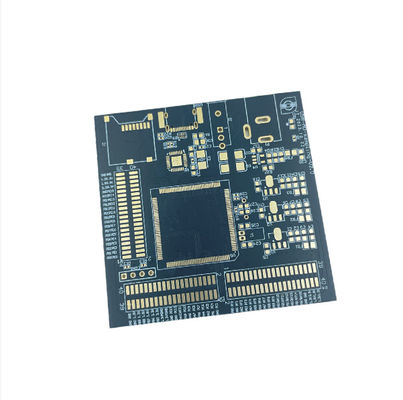

Black High Frequency PCBs With Black Silk Screen Color For Automotive Radar

Product Description:

Our High-Speed Printed Boards are made from high-quality FR4 material, which provides excellent thermal stability and mechanical strength. This makes them highly reliable and durable, even in harsh environments. The FR4 material also allows for easy fabrication, making it ideal for high-volume production.

Our High-Frequency Printed Boards are available in a range of solder mask colors, including green, blue, white, black, and more. This allows you to choose the perfect color to suit your specific needs and preferences. The solder mask is designed to protect the copper traces and prevent short circuits, ensuring that your circuit board operates at peak performance.

Our High-Frequency Printed Boards are available with a range of surface finishes, including HASL, ENIG, OSP, and more. Each surface finish has its own unique benefits and characteristics, so you can choose the one that best suits your specific needs and requirements.

Our High-Frequency Printed Boards offer ±10% impedance control, ensuring that your high-frequency signals are transmitted accurately and efficiently. This level of impedance control is essential for high-speed and high-frequency applications, where even the slightest deviation can cause significant signal degradation.

Our High-Frequency Printed Boards are available in a range of layer configurations, from 2 to 10 layers. This allows you to choose the perfect layer configuration to suit your specific needs and requirements, ensuring that your circuit board operates at peak performance.

Technical Parameters:

Applications:

If you are looking for high-performance circuit boards for your electronic devices, JIETENG's High Frequency PCBs are a great choice. These high-frequency printed boards are designed to offer outstanding performance at high frequencies, making them ideal for a range of applications.

With their impressive impedance control of ±10% and minimum hole size of 0.2mm, High Frequency PCBs from JIETENG are perfect for use in RF devices, microwave amplifiers, and other high-frequency applications. Their high-quality construction ensures that they provide excellent signal integrity and reliability, even under the most demanding conditions.

These high-frequency PCBs are available in 2-10 layer configurations, allowing you to choose the perfect option for your specific needs. Additionally, they come in a range of solder mask colors, including green, blue, white, black, and more, so you can choose the color that best suits your design.

When it comes to packaging, JIETENG offers a range of options to ensure that your High Frequency PCBs arrive safely and securely. You can choose from vacuum packing, bubble bag, carton box, and more, depending on your preferences and needs.

Overall, if you are looking for high-quality, reliable, and high-performance circuit boards for your electronic devices, JIETENG's High Frequency PCBs are an excellent choice. With their exceptional performance at high frequencies and their range of customization options, they are perfect for a wide range of applications and scenarios.

Packing and Shipping:

Product Packaging:

• The High Frequency PCBs will be packaged in anti-static bags to prevent electrostatic discharge during transportation.
• The anti-static bags will be placed in a sturdy cardboard box to provide additional protection during shipping.
• The cardboard box will be sealed with packing tape to ensure that the product is secure.

Shipping:

• The High Frequency PCBs will be shipped via a reputable courier service.
• The courier service will provide a tracking number so that the shipment can be monitored.
• Shipping will be calculated based on the weight and destination of the package.
• The estimated delivery time will depend on the shipping method selected and the destination.

FAQ:

Q1. What information is needed for PCB quotation?
A: Gerber files and technical requirements. Such as PCB material, thickness, copper surface, color of mask and silk screen, etc. )
Q2. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
Q3. Are my files safe?
A: Your files are completely safe. We protect our customers' intellectual property rights throughout the process. All files of customers will never be shared with any third party.
Q4. What is the minimum order quantity?
A: There is no minimum order quantity in our company. We are able to flexibly handle small and large batch production.
Q5. How much is the shipping cost?
A: The shipping cost depends on the destination, weight, and packaging size of the goods. If you need us to give you a quote, please let us know.
Q6. What is our brand?
A: Jieteng Circuit Co., Ltd
