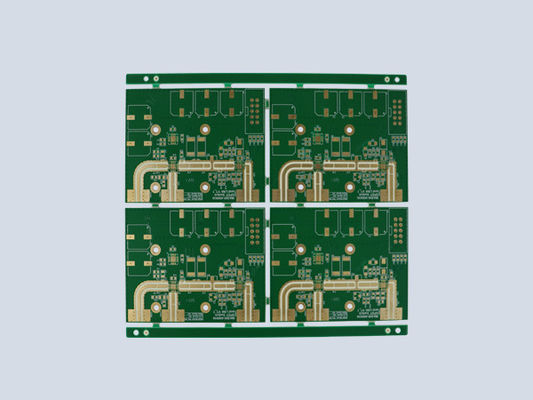

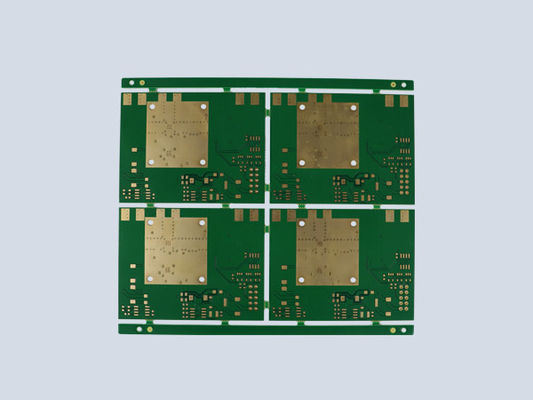

0.3-3.0mm Thickness Multilayer PCB with White Solder Mask and Silkscreen Color Option
| Place of Origin | CHINA SHENZHEN |
|---|---|
| Brand Name | JIETENG |
| Certification | UL ROHS SGS ISO9001 TS16949 |
| Model Number | Hybrid Circuit Board 05 |
| Minimum Order Quantity | 1pcs |
| Price | 0.2-5USD/piece |
| Packaging Details | Blank carton, vacuum packed |
| Delivery Time | 5-7 working day |
| Payment Terms | T/T, Western Union, |
| Supply Ability | 10000PCS/DAY |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | OEM Electronics,communication PCB | Min. Line Spacing | 3 Mil (0.075 Mm) |
|---|---|---|---|
| Min. Line Width | 0.075mm/0.075mm(3mil/3mil) | Surface Finishing | HASL,OSP,ENIG,Immersion Gold,HASL Lead Free/OSP/Soft Gold/Hard Gold |
| Product Name | High Frequency Pcb Rogers PTFE Pcb Board,High Frequency Rogers 5880 PCB | Solder Mask | White,blue,Green. Red. Blue. White. Black.Yellow,green,black |
| Material | FR4 Hight TG,Tg180 | Application | And So On,Industry/Medical/Consumer Electronic,rigid Fpc,medicine,military |
| Silkscreen Color | White,White Or On Your Request.,black,Green/white/yellow/black/blue/purple,yellow | Board Thickness | 0.4~3mm |
| Highlight | 3.0mm Thickness Multilayer PCB,White Solder Mask Multilayer PCB,Multilayer PCB with Silkscreen Color Option |
||
Product Description
High frequency and high performance multilayer printed circuit board, thickness 0.3-3.0mm
Product Description:
High-frequency printed circuit board (PCB) is a high-performance main board used in various electronic devices, with the number of layers ranging from 2 to 22. It is designed to meet the stringent requirements of various industrial/aerospace applications, with extremely precise line width of 3mil and minimum aperture of 0.1mm. High-frequency PCB is also available in a variety of colors, including green, white, black, blue, red and yellow solder mask. In addition, it can be delivered quickly and conveniently by air, sea or express. High-frequency printed circuit boards are an important part of various electronic products, providing reliable and durable performance.
Application:
Jie Teng's PCB05 high-frequency printed circuit board is designed to meet the highest quality and reliability standards. It is made of durable high-frequency high-speed materials and can withstand temperatures up to 180°C. The high-frequency printed circuit board also has a board thickness of 0.4-3.0mm and a minimum line spacing of 3mil. The solder mask color is available in green, white, black, blue, red and yellow, and the surface treatment can be HASL, ENIG, OSP, immersion silver or gold finger. This high-frequency printed circuit board is suitable for a variety of applications, including motherboard PCB and other PCBs.
Customization:
Jieteng High Frequency Printed Circuit Board (Model: PCB05) is the ideal solution for your electronic projects. This product is manufactured in China and can be shipped by air/sea/express. It is available in a variety of silk screen colors (white/black/yellow), surface treatments (HASL/ENIG/OSP/immersion silver/gold finger), number of layers (2-22), and board thickness range of 0.4-3.0 mm.
Our high frequency printed circuit board is designed to meet your specific needs. It is durable and reliable, and is perfect for complex electronic projects. With Jie Teng, you can rest assured that you will get high-quality, precise high frequency circuit board production.
FAQ:
Q1: What is a multilayer PCB?
A1: A multilayer PCB is a circuit board made of multiple layers of copper foil laminated together and bonded with epoxy resin. It is used to connect and route electronic components and provide electrical pathways between components.
Q2: What is the brand name and model of high-frequency PCB?
A2: The brand name of high-frequency PCB is Jieteng and the model is PCB05.
Q3: Where are high-frequency PCBs manufactured?
A3: High-frequency PCBs are manufactured in Shenzhen, China.
Q4: What materials are used to make multilayer PCBs?
A4: The materials used to make high-frequency PCBs are copper foil laminated together and bonded with epoxy resin.
Q5: What is the purpose of high-frequency PCBs?
A5: The purpose of high-frequency PCBs is to connect and route electronic components and provide electrical pathways between components.
