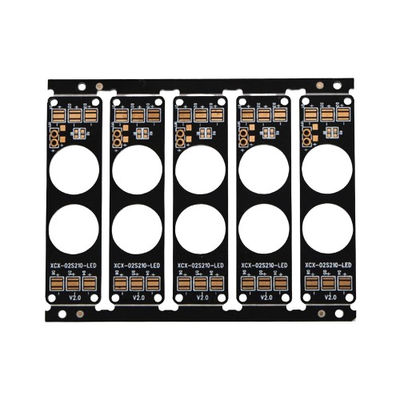

2 Layer Black SMT PCB Assembly 1.6mm 1oz Copper Low Profile Flying Probe Test

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
PCB Layer 2-Layer PCB Thickness 1.6mm
Test Type Flying Probe Test Copper Thickness 1oz
PCB Size 100mm*100mm Min. Line Width/Space 0.1mm/0.1mm
Product Type PCB SMT Assembly Solder Mask Color Green
High Light

1.6mm SMT PCB Assembly


1oz SMT PCB Assembly


Low Profile SMT PCB Assembly

Leave a Message
Product Description

Product Description:

The PCB SMT (Surface Mount Technology) Assembly product is a state-of-the-art solution for modern electronics manufacturing, combining precision, reliability, and high performance. This product offers a comprehensive assembly service that caters to a wide range of applications, from consumer electronics to industrial control systems. With Surface Mount Soldering Assembly being at the core of this service, clients can expect a seamless integration of components onto the printed circuit board (PCB) with exceptional soldering quality.

One of the critical attributes of this product is its Surface Finish. The PCB SMT Assembly product comes with a HASL (Hot Air Solder Leveling) surface finish, which is widely recognized for its cost-effectiveness and robustness. HASL provides a thick layer of solder over the copper tracks, ensuring a reliable solder joint and a good shelf life for the PCB. This finish is particularly suitable for conventional soldering techniques and is an excellent choice for Printed Circuit Board Soldering applications that require a high level of durability and longevity.

The PCB SMT Assembly product boasts a minimum hole size of 0.2mm, which is essential for high-density component placement and miniaturization trends in electronics. The ability to accommodate such fine features ensures that the product can be used for complex and advanced circuit designs, enabling designers to push the boundaries of PCB technology. This fine hole size is crucial for achieving high-precision interconnections and is a testament to the product's capability to handle intricate Printed Circuit Board Soldering tasks.

In terms of aesthetics and functionality, the Solder Mask Color of this product is the traditional green. The green solder mask provides a contrast against the copper tracks and silkscreen, making it easier to visually inspect the PCB for any potential issues. This color is also associated with good solderability and protection of the copper circuits from oxidation, which further enhances the performance of the Surface Mount Soldering Assembly process.

Quality and reliability are at the forefront of the PCB SMT Assembly product, which is why the Flying Probe Test is employed as the Test Type. This advanced testing method uses moving probes to test the electrical performance of each component on the PCB without the need for a dedicated test fixture. The Flying Probe Test is ideal for prototypes, small production runs, or boards with a high mix of components. It provides a cost-effective and flexible testing solution, ensuring that the final product meets the stringent reliability standards required in today's competitive market.

The Copper Thickness of the PCB used in the SMT Assembly process is 1oz, which is a standard thickness offering a good balance between current carrying capacity and thermal management. This thickness ensures that the PCB can handle the typical current levels for most electronic applications while maintaining structural integrity. The 1oz copper thickness also contributes to the quality of the soldering process, as it allows for a solid bond between the components and the PCB, which is crucial for the overall reliability of the Printed Circuit Board Soldering service.

In summary, the PCB SMT Assembly product is an exceptional offering that combines HASL surface finish, a minimum hole size of 0.2mm, a green solder mask, the Flying Probe Test, and a copper thickness of 1oz to deliver a high-quality, reliable, and efficient Surface Mount Soldering Assembly service. Whether for prototyping or mass production, this product ensures that customers receive a PCB that meets the highest standards of quality and performance, making it an ideal choice for a broad spectrum of electronic applications.
