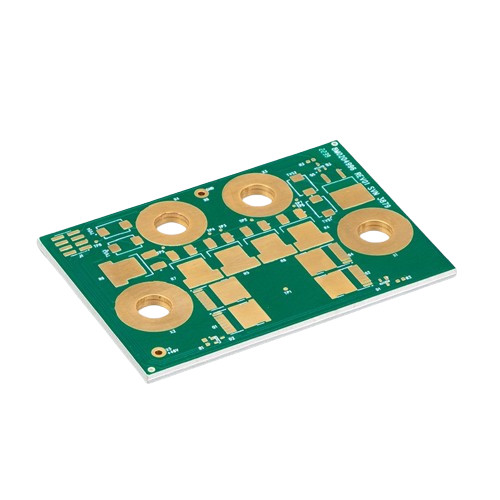

FR4 Impedance Control PCB Board with Green Solder Mask 1.6mm Assembly Service
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBoard Thickness | 1.6mm | Impedance Control | Yes |
---|---|---|---|
Material | FR4 | Min Hole Size | 0.2mm |
Solder Mask Color | Green | Assembly Service | Yes |
Min Line Width | 0.1mm | Copper Thickness | 1oz |
High Light | FR4 PCB Board Assembly Service,Green Solder Mask FR4 PCB Board,1.6mm FR4 PCB Board |
Product Description:
The SMT (Surface Mount Technology) PCB (Printed Circuit Board) is a high-quality electronic circuit board designed for a wide range of applications in the electronics industry. This PCB is crafted with precision and is characterized by its 1oz copper thickness, which ensures excellent conductivity and durability for electronic circuits. The thickness of the copper layer is a crucial factor in determining the current carrying capacity of the PCB, and 1oz copper offers a good balance between physical robustness and electrical performance.
This board is a 2-layer PCB, which means it consists of two separate layers of conductive material. This dual-layer structure is ideal for more complex circuits than a single-layer PCB can accommodate, providing ample space for a denser layout of the components. Multi-layer circuit boards like this one are essential in modern electronic devices where space is at a premium, and functionality cannot be compromised.
One of the critical attributes of this SMT PCB board is its minimum hole size of 0.2mm. The precision-drilled holes are designed to accommodate the leads of surface-mount components tightly. This fine hole size is indicative of the board's ability to support high-density component placement, which is a crucial aspect of advanced electronic circuit board design. This feature is particularly important for applications requiring sophisticated circuitry in a compact space, such as smartphones, tablets, and other portable electronic devices.
The solder mask color of this PCB is the traditional green, which is not just for aesthetic purposes but also serves a functional role. The solder mask is a layer of protective insulating material that helps to prevent short circuits by protecting the copper traces from accidental contact with solder, conductive bits, or other components during assembly. The green color is widely recognized in the industry and provides a contrast that makes it easier to inspect the PCB for any manufacturing defects or misalignments.
Furthermore, this electronic circuit board boasts a minimum line spacing of 0.1mm. This tight line spacing allows for a higher density of the wiring or traces on the PCB, enabling the design of more intricate and complex circuits without increasing the board's size. This attribute is particularly beneficial for multi-layer circuit boards that need to accommodate a large number of connections within a limited area. It also helps in the miniaturization of electronic devices, allowing for more functionality to be packed into smaller form factors.
The combination of these features makes this SMT PCB board an ideal substrate for building reliable and efficient electronic assemblies. With its 1oz copper thickness and 2-layer construction, it provides a sturdy platform for a wide range of applications. The precision of a 0.2mm minimum hole size, coupled with a 0.1mm minimum line spacing, allows for the creation of intricate multi-layer circuit boards that can meet the demands of increasingly complex electronic designs.
In summary, this SMT PCB board is a versatile and robust solution for modern electronic applications. Its construction quality and design specifications—including the 1oz copper thickness, 2-layer design, 0.2mm minimum hole size, green solder mask, and 0.1mm minimum line spacing—make it a suitable choice for various electronic products. Whether you are developing a prototype or mass-producing consumer electronics, this multi-layer circuit board provides a reliable foundation for your electronic components and systems.
Features:
- Product Name: SMT PCB Board
- Min Line Width: 0.1mm
- Surface Finish: HASL
- Solder Mask Color: Green
- Material: FR4
- Board Thickness: 1.6mm
- Electronic Circuit Board
- Integrated Circuit Board
Technical Parameters:
Parameter | Specification |
---|---|
Board Thickness | 1.6mm |
Min Hole Size | 0.2mm |
Min Line Spacing | 0.1mm |
Assembly Service | Yes |
Min Line Width | 0.1mm |
Layer | 2 |
Solder Mask Color | Green |
Impedance Control | Yes |
Copper Thickness | 1oz |
Silkscreen Color | White |
Applications:
The JTETENG PCB circuit board , originating from China , is a state-of-the-art electronic circuit board designed to serve as the backbone of modern electronic devices. This board, carrying the model number PCB circuit board, boasts a professional appearance with a white silkscreen color on top of a green solder mask , offering clear visibility for component labeling and diagnostics. With a robust 1.6mm board thickness , it is sturdy enough to withstand the rigors of everyday use while maintaining the delicate precision required for complex circuitry.
The JIETENG PCB is finished with HASL (Hot Air Solder Leveling), a popular surface finish that provides a reliable foundation for soldering components, ensuring a strong bond and a long-lasting connection. The HASL finish also contributes to the longevity of the board by preventing oxidation, which is vital in maintaining functionality over time. The 1oz copper thickness of the JIETENG PCB circuit board allows for a good balance between conductivity and thermal management, assuring that the board performs well under electrical stress and heat dissipation requirements.
This PCB is not just a single-layer board; it's a multi-layer circuit board which enhances its functionality for complex electronic systems. The multi-layer design provides more space for a higher number of connections and components, making it an ideal choice for intricate electronic designs that require more advanced circuitry and signal integrity. It’s an essential component in a variety of applications, from consumer electronics like smartphones and laptops to industrial equipment and medical devices.
The JIETENG PCB circuit board is also an integrated circuit board , allowing for the seamless incorporation of various electronic components into a single functional unit. This integration is critical in applications where space is at a premium and efficiency is of the utmost importance. Whether in aerospace, automotive, or home automation, the JIETENG PCB stands out as a reliable and versatile solution that engineers and designers can count on to bring their electronic inventions to life.
In summary, whether it's for prototyping or mass production, the JIETENG PCB circuit board presents a reliable and high-quality platform for a myriad of electronic applications. Its robust construction, paired with its advanced features, make it a go-to choice for industry professionals looking to develop cutting-edge electronic solutions.
Customization:
Brand Name: JIETENG
Model Number: PCB circuit board
Place of Origin: China
Material: FR4 - ideal for constructing Multi-Layer Circuit Boards
Silkscreen Color: White - ensuring clear and legible markings on your Printed Circuit Board
Min Hole Size: 0.2mm - precision drilling for complex Integrated Circuit Boards
Board Thickness: 1.6mm - a standard thickness for robust and durable PCBs
Solder Mask Color: Green - the classic look for high-quality circuit board protection
Support and Services:
Our Product Technical Support and Services for SMT (Surface Mount Technology) PCB (Printed Circuit Board) products are designed to ensure that you get the most out of your PCB components. We offer a comprehensive suite of services to support your technical needs:
Technical Assistance: Our team of experts is available to provide you with guidance on product selection, design recommendations, and process optimization. We can help troubleshoot any issues you may encounter during the assembly or application of your SMT PCB.
Documentation and Resources: We provide a wide range of documentation, including datasheets, application notes, and design guidelines to ensure you have all the information necessary to effectively use our products.
Design Review Services: Before you move into production, our engineers can review your designs to identify potential issues and suggest improvements. This can help you avoid costly rework and delays.
On-Site Support: For complex projects or problems, we can arrange for a technical support engineer to visit your facility to provide hands-on assistance and training.
Training and Education: We offer training sessions and webinars to keep you up-to-date on the latest SMT PCB technologies and best practices.
Quality and Reliability Testing: Our products undergo rigorous testing to ensure high-quality and reliability. If you encounter any performance issues, our team will work with you to conduct analysis and resolve the problem.
Repair Services: Should your SMT PCB product require repair, we can provide you with detailed instructions and support for the repair process, or you can send the product to us for professional servicing.
We are committed to providing exceptional support and services to our customers. Our goal is to help you achieve the highest levels of performance and reliability from your SMT PCB products.
Packing and Shipping:
Product Packaging:
The SMT (Surface Mount Technology) PCB (Printed Circuit Board) will be securely packaged to ensure its integrity during transport. Each PCB will be individually enclosed in a static-protective bag, designed to shield sensitive electronic components from electrostatic discharge. The bag will then be placed within a cushioned packaging material, such as foam or bubble wrap, to provide additional protection against impact and vibration. Multiple units will be organized into sturdy, partitioned boxes to prevent movement and contact between boards. The outer carton will be made of high-grade, corrugated cardboard, sealed with tamper-evident tape to provide a final layer of security during shipment.
Shipping:
All SMT PCB Board orders will be shipped through a reliable courier service to ensure timely and safe delivery. Customers will have the option to choose from standard or expedited shipping services based on their needs. Tracking information will be provided upon dispatch, allowing customers to monitor their package's journey. The PCBs will be shipped from our facility with insurance coverage to protect against loss or damage during transit. We commit to handling all customs clearance procedures, ensuring a smooth delivery process to both domestic and international destinations. Please inspect the package upon arrival and report any issues within 48 hours to our customer service team for prompt assistance.
FAQ:
Q1: What is the brand name of the SMT PCB Board being offered?
A1: The brand name of the SMT PCB Board is JIETENG.
Q2: Can you provide the model number for this particular SMT PCB Board?
A2: Yes, the model number for this SMT PCB Board is "PCB circuit board".
Q3: Where is the JIETENG SMT PCB Board manufactured?
A3: The JIETENG SMT PCB Board is manufactured in China.
Q4: Is the JIETENG PCB circuit board suitable for high-frequency applications?
A4: Yes, JIETENG PCB circuit boards are designed to accommodate a variety of applications, including high-frequency requirements. Please check the specific technical specifications for your application.
Q5: Can the JIETENG SMT PCB Board be customized according to specific design requirements?
A5: Generally, JIETENG offers customization options for their SMT PCB Boards. You can provide your specific design requirements, and the company will assess the feasibility of manufacturing a custom PCB to meet your needs.
