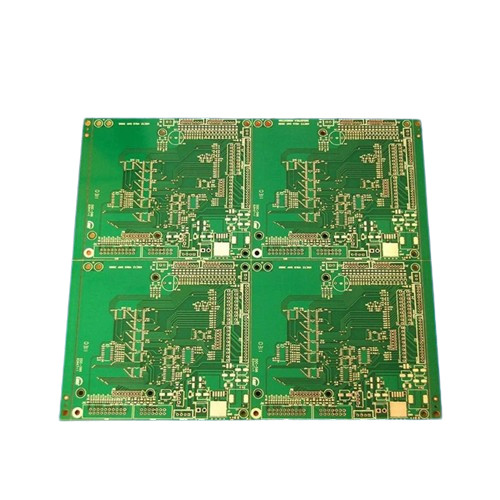

12-Layer PCB Board Assembly Laser Drilling Min Line Width/Space 3mil/3mil

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Silk Screen Color White, Black, Yellow, Etc. Min. Annular Ring 3mil
Copper Thickness 1/2oz-4oz Min. Line Width/Space 3mil/3mil
Assembly Type SMT, Through Hole, Mixed, Etc. Testing AOI, X-Ray, Flying Probe, Etc.
Material FR4, Aluminum, Rogers, Etc. Warranty 1 Year
High Light

Laser Drilling 12-Layer PCB Board

,

12-Layer PCB Board Assembly

Leave a Message
Product Description

Product Description:

PCB Board Assembly Product Overview

PCB Board Assembly is a crucial step in the PCBA manufacturing process, ensuring the functionality and reliability of printed circuit boards. Our company specializes in PCB manufacturing with a wide range of options to meet your specific needs.

Our PCB manufacturing process guarantees precision and quality with a board thickness range of 0.2mm to 3.2mm. This allows for flexibility in designing and building your PCB, ensuring it can meet the specific demands of your project.

We also offer various copper thickness options, ranging from 1/2oz to 4oz. This allows for better conductivity and durability, ensuring your PCB can handle high-frequency and high-power applications.

One of the most critical aspects of PCB assembly is the surface finish. We offer a variety of surface finishes, including HASL, ENIG, OSP, and more. These finishes provide excellent protection against oxidation and corrosion, ensuring your PCB can withstand harsh environments.

Our advanced manufacturing techniques allow for a minimum line width and space of 3mil/3mil, providing precision and accuracy in your PCB design. This is especially crucial for high-density circuit boards with complex layouts.

In addition to our manufacturing capabilities, we also offer a range of silk screen colors, including white, black, yellow, and more. This allows for customization and branding options, making your PCB stand out.

At PCB Board Assembly, we understand the importance of quality and reliability in PCB manufacturing. Our state-of-the-art facilities and experienced team ensure that your PCBs are built to the highest standards. Contact us today to learn more about our services and how we can help with your next project.



Features:

  • Product Name: PCB Board Assembly
  • Material: FR4, Aluminum, Rogers, Etc.
  • Surface Finish: HASL, ENIG, OSP, Etc.
  • Min. Hole Size: 0.2mm
  • Min. Annular Ring: 3mil
  • PCBA Manufacturing Process
  • Circuit Board Assembly Process
  • Circuit Board Assembly Services


Technical Parameters:

Technical Parameters Values
Min. Line Width/Space 3mil/3mil
Min. Annular Ring 3mil
Min. Hole Size 0.2mm
Warranty 1 Year
Board Thickness 0.2mm-3.2mm
Solder Mask Color Green, White, Black, Etc.
Copper Thickness 1/2oz-4oz
Silk Screen Color White, Black, Yellow, Etc.
Testing AOI, X-Ray, Flying Probe, Etc.
Assembly Type SMT, Through Hole, Mixed, Etc.
Circuit Board Assembly Process:

The circuit board assembly process involves the following steps:

  • Component placement: The components are placed onto the board according to the design.
  • Solder paste application: Solder paste is applied to the pads of the board using a stencil.
  • Reflow soldering: The board is heated in a reflow oven to melt the solder paste and create a connection between the components and the board.
  • Inspection: The board is inspected using various methods such as AOI, X-Ray, and Flying Probe to ensure the components are correctly placed and soldered.
  • Testing: The assembled board is tested to ensure it meets the required functionality and specifications.
  • Final packaging: The assembled board is packaged and prepared for shipping.
PCBA Manufacturing Process:

The PCBA manufacturing process includes the following steps:

  • Design and layout: The circuit board design and layout are created using specialized software.
  • PCB fabrication: The board design is transferred onto a physical board using a variety of techniques such as etching, milling, or printing.
  • Component procurement: The required components are sourced and purchased.
  • Circuit board assembly: The components are placed onto the board and soldered using the process described above.
  • Testing and inspection: The assembled board is tested and inspected to ensure it meets the required specifications.
  • Final packaging: The assembled board is packaged and prepared for shipping to the customer.


Applications:

PCB Board Assembly- JIETENG
High-Quality PCB Board Assembly for Various Applications

Brand Name: JIETENG

Model Number: PCB circuit board

Place of Origin: China

Board Thickness: 0.2mm-3.2mm

Min. Line Width/Space: 3mil/3mil

Testing: AOI, X-Ray, Flying Probe, Etc.

Material: FR4, Aluminum, Rogers, Etc.

What is PCB Board Assembly?

PCB Board Assembly, also known as Printed Circuit Board Assembly, is the process of assembling electronic components onto a printed circuit board (PCB) using surface mount technology (SMT) or through-hole technology (THT). It is a crucial step in the production of electronic devices and plays a significant role in the functionality and performance of the final product.

Application of PCB Board Assembly

The PCB Board Assembly by JIETENG is widely used in various industries for different applications. Some of the key areas where our products are utilized are:

  • Consumer Electronics: Our PCB assembly services are used for manufacturing electronic devices such as smartphones, laptops, tablets, and other household appliances.
  • Automotive Industry: Many electronic components used in vehicles are assembled on PCBs. Our high-quality PCB Board Assembly ensures reliable performance and durability in the harsh conditions of the automotive industry.
  • Industrial Applications: Our products are also used in industrial equipment and machinery, such as control systems, sensors, and power supplies.
  • Medical Devices: With the increasing demand for advanced medical devices, our PCB Board Assembly services are utilized in the production of equipment such as patient monitors, ultrasound machines, and medical imaging systems.
  • Aerospace and Defense: The aerospace and defense industries require highly reliable and durable electronic components. Our PCB assembly services meet the strict quality and performance standards of these industries.

Our PCB Board Assembly is suitable for a wide range of applications and can be customized to meet specific requirements of different industries.

The PCBA Manufacturing Process

The PCBA manufacturing process at JIETENG involves several steps, including:

  1. PCB Manufacturing: First, the PCB is manufactured according to the design and specifications provided by the client using high-quality materials such as FR4, Aluminum, or Rogers.
  2. Component Sourcing: After the PCB is ready, the required electronic components are sourced from trusted suppliers.
  3. Surface Mount Technology: In this step, the SMT machines precisely place the electronic components onto the PCB, which is then heated to fuse the components onto the board.
  4. Through-Hole Technology: In THT, the electronic components with leads are inserted into pre-drilled holes on the PCB and then soldered onto the board.
  5. Electrical Testing: After the components are soldered, the PCB goes through electrical testing to ensure proper functionality and detect any defects.
  6. Quality Control: Our strict quality control process ensures that the final product meets the highest standards and specifications of our clients.
  7. Packaging and Shipping: The final step involves packaging the PCB Board Assembly and shipping it to the client's designated location.
Why Choose JIETENG for PCB Board Assembly?

At JIETENG, we provide reliable and high-quality electronic manufacturing services, including PCB assembly, at competitive prices. Our state-of-the-art facilities and advanced equipment enable us to meet the diverse needs and requirements of our clients. We also have a team of experienced engineers and technicians who ensure the smooth and efficient execution of the PCBA manufacturing process. Moreover, our commitment to quality control and strict adherence to international standards make us a preferred choice for PCB Board Assembly.

Choose JIETENG for your PCB Board Assembly needs and experience the best-in-class services and quality products that meet your specific requirements and applications. Contact us now for a quote!



Customization:

PCB Board Assembly Customized Service

Welcome to JIETENG, your reliable partner for Printed Circuit Board Manufacturing and Circuit Board Assembly Process . We offer top-notch Circuit Board Assembly Services to meet your specific needs and requirements.

Product Information
  • Brand Name: JIETENG
  • Model Number: PCB circuit board
  • Place of Origin: China
  • Min. Annular Ring: 3mil
  • Min. Hole Size: 0.2mm
  • Board Thickness: 0.2mm-3.2mm
  • Assembly Type: SMT, Through Hole, Mixed, Etc.
  • Surface Finish: HASL, ENIG, OSP, Etc.

At JIETENG, we understand the importance of precision and quality in Circuit Board Assembly Services . That's why we use advanced technology and top-grade materials to ensure the best results for our customers.

Customization Options

We offer a variety of customization options to meet your specific needs and requirements. Our Circuit Board Assembly Services include but are not limited to:

  • Customized board specifications for Min. Annular Ring and Min. Hole Size
  • Flexible board thickness options from 0.2mm to 3.2mm
  • Multiple assembly types including SMT, Through Hole, Mixed, and more
  • Various surface finish options such as HASL, ENIG, OSP, and more

No matter what your specific needs are, we are committed to providing you with the best Circuit Board Assembly Services to ensure the success of your project.

Contact Us

Are you ready to start your PCB Board Assembly project with JIETENG? Contact us now to discuss your specific needs and receive a personalized quote.

Email: info@jteteng.com
Phone: +86 1234567890



Packing and Shipping:

PCB Board Assembly
Packaging and Shipping

At PCB Board Assembly, we understand the importance of proper packaging and shipping to ensure the safe delivery of your assembled PCB boards. That's why we offer a variety of packaging and shipping options to meet your specific needs.

Packaging Options
  • Anti-Static Bags: We use anti-static bags to protect your PCB boards from electrostatic discharge during transportation.
  • Bubble Wrap: For added protection, we also offer bubble wrap to prevent any damage to your boards.
  • Custom Packaging: If you have specific packaging requirements, our team can work with you to create a custom packaging solution.
Shipping Options

We partner with reliable shipping carriers to ensure your PCB boards are delivered safely and on time. Our shipping options include:

  • Standard Ground Shipping: This is our most cost-effective option for domestic shipments.
  • Expedited Shipping: If you need your PCB boards delivered quickly, we offer expedited shipping services at an additional cost.
  • International Shipping: We also offer international shipping to customers outside of the United States.

Once your PCB boards are packaged and ready to ship, we carefully label each package with detailed information to ensure proper handling and delivery. We also provide tracking numbers for all shipments so you can easily track your order.

At PCB Board Assembly, we take every precaution to make sure your assembled PCB boards arrive safely and in perfect condition. Contact us today to learn more about our packaging and shipping options.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is JIETENG.
  • Q: What is the model number of this product?
    A: The model number of this product is PCB circuit board.
  • Q: Where is this product manufactured?
    A: This product is manufactured in China.
  • Q: What are the main features of this product?
    A: This product is a PCB circuit board used for electronic assembly. It has a compact design, high durability, and excellent electrical conductivity.
  • Q: Can this product be customized?
    A: Yes, we offer customization services for this product according to customer's specific requirements.
