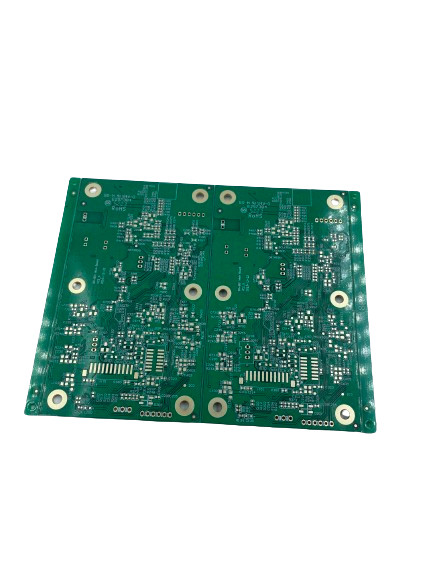

Multi Layer Immersion Gold Circuit Board PCB Manufacturing 1-4oz Copper Thickness

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Finish HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Etc. Min. Hole Size 0.2mm
Min. Line Spacing 0.1mm Board Thickness 0.2-3.2mm
Copper Thickness 1-4oz Min. Line Width 0.1mm
Impedance Control Yes Layer Count 2-20
High Light

Multi Layer Immersion Gold PCB

,

Multilayer Circuit Board PCB

,

4oz Copper Thickness Circuit Board

Leave a Message
Product Description

Product Description:

1-4oz Copper Thickness And Impedance Controlled Multi-Layer Immersion Gold Circuit Board PCB Manufacturing

Multilayer PCB Fabrication

Welcome to the world of advanced PCB technology with Multi-Layer PCB Manufacturing. Our company specializes in providing high-quality PCB production services, including Multi-Layer PCB Component Assembly and Multi-Level Printed Circuit Board Fabrication.

Our Multilayer PCB Fabrication process is designed to meet the demands of modern electronic devices, with the ability to produce PCBs with complex designs and high functionality. We ensure the highest level of precision, reliability, and efficiency in our production, making us a trusted name in the industry.

Product Overview

Our Multilayer PCB Fabrication offers a wide range of options to meet your specific needs, with features such as:

  • Min. Hole Size: Our state-of-the-art technology allows us to produce PCBs with a minimum hole size of 0.2mm, making it possible to accommodate even the most intricate designs.
  • Surface Finish: We offer a variety of surface finishes to choose from, including HASL, ENIG, OSP, Immersion Silver, Immersion Tin, and more. This ensures that your PCBs have the perfect surface for your application.
  • Impedance Control: Our Multilayer PCB Fabrication process includes impedance control, allowing us to maintain the desired impedance levels for your PCBs. This is crucial for high-frequency and high-speed applications.
  • Copper Thickness: We offer a range of copper thickness options, from 1-4oz, to meet the requirements of different applications. This ensures the right balance between strength, flexibility, and conductivity for your PCBs.
  • Min. Line Width: With our advanced technology and skilled team, we can produce PCBs with a minimum line width of 0.1mm, allowing for intricate designs and high precision.

At Multi-Layer PCB Manufacturing, we are committed to providing our customers with the best quality PCBs that meet their specific requirements. We use only the highest quality materials and follow strict quality control procedures to ensure that every PCB that leaves our facility is of the highest standards.
