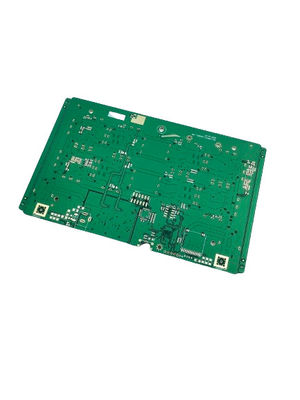

2 Layer Circuit Board Processing PCBA Electronic Materials Welding Contract Work And Materials

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Components Placement ±0.02mm Lead Time 7-10 Days
Components Orientation ±0.02mm Components Passive And Active Components
Product Name SMT Assembly Service Testing Flying Probe Test, X-Ray Inspection, AOI, Etc.
Manufacturing Process Surface Mount Technology (SMT) Components Height 0.2mm-25.0mm
High Light

Circuit Board Processing PCBA

,

2 Layer Circuit Board PCBA

Leave a Message
Product Description

2-Layer Circuit Board Processing PCBA Electronic Materials Welding Contract Work And Materials

Product Description:

Our SMT Assembly Service is a comprehensive Surface Mount Technology (SMT) assembly solution for electronic products. Our capability covers a wide range of components, from 0.2mm-25.0mm in height, with a placement accuracy of ±0.02mm and orientation accuracy of ±0.02mm. We offer a complete package to our customers, from design to manufacturing, including components procurement, SMT assembly, and comprehensive testing such as Flying Probe Test, X-Ray Inspection, AOI, etc. Our facility is equipped with modern SMT equipment and staffed by experienced and well-trained technicians, ensuring the highest quality standard and superior customer satisfaction. We guarantee to provide our customers with the highest quality SMT assembly maintenance and facility services.



Features:

Product Features of SMT Assembly Service
  • Product Name: SMT Assembly Service
  • Board Size: Up To 500mm X 500mm
  • Component Pitch: 0.2mm-5.0mm
  • Components Size: 01005-5050
  • Manufacturing Process: Surface Mount Technology (SMT)
  • Surface Finish: HASL, ENIG, OSP, Immersion Gold, Etc.
  • Surface Mount Assembly Facility Service
  • SMT Assembly Maintenance Service
  • SMT Assembly Facility Service


Technical Parameters:

Product Name Technical Parameters
SMT Assembly Service Lead Time: 7-10 Days
Surface Mount Assembly Facility Service Components Height: 0.2mm-25.0mm
Surface Mount Maintenance Service Components: Passive And Active Components
SMT Assembly Facility Service Components Placement: ±0.02mm
- Components Orientation: ±0.02mm
- Components Type: BGA, QFN, SOP, PLCC, SOIC, Etc.
- Component Pitch: 0.2mm-5.0mm
- Components Size: 01005-5050
- Surface Finish: HASL, ENIG, OSP, Immersion Gold, Etc.


Applications:

JIETENG SMT Assembly Service:

JIETENG offers a comprehensive Surface Mount Technology (SMT) Assembly Service for PCB circuit boards with board thickness ranging from 0.4mm to 4.0mm and components size from 01005 to 5050. Our SMT Assembly Facility Service is ideal for customers who need a reliable and cost-effective solution for their manufacturing needs. Our SMT Assembly Service includes Flying Probe Test, X-Ray Inspection, AOI, and other necessary tests to ensure the reliability and accuracy of the assembled boards. With our Surface Mount Maintenance Service, we guarantee a lead time of 7-10 days with high-quality results.

Our Surface Mount Assembly Facility Service is designed to meet the highest standards of quality and precision. We use advanced production technology to ensure that our customers' products are of the highest quality and are produced in a timely and cost-effective manner. Our experienced engineers and technicians are committed to providing our customers with the best possible service. With our commitment to excellence, you can be assured that JIETENG will provide you with the best possible solution for your SMT assembly needs.



Customization:

Welcome to JIETENG's SMT Assembly Service! Our SMT Assembly Service provides PCB circuit board with component pitch ranging from 0.2mm-5.0mm, and components height ranging from 0.2mm-25.0mm. We use advanced Surface Mount Technology (SMT) Assembly to ensure quality and accuracy. Our products also undergo various tests such as Flying Probe Test, X-Ray Inspection, AOI, and more to ensure that the products meet your expectations. Our surface finishes include HASL, ENIG, OSP, and Immersion Gold. We provide full-service SMT Assembly Maintenance Service, SMT Assembly Facility Service, and Surface Mount Technology Assembly Service. Our dedicated team of engineers and technicians strive to ensure that each product is of the highest quality.



Support and Services:

SMT Assembly Service provides technical support and services to ensure the best user experience. Our team is available to help you with any technical issues you may have, from installation and setup to troubleshooting and upgrades. We also offer a variety of services, including assembly and rework, testing and inspection, and system maintenance and repair.

Our technical support team is available to answer your questions and provide assistance with any technical issues you may have. We also offer a range of services, including assembly and rework, testing and inspection, and system maintenance and repair. Our experienced technicians are dedicated to providing the best customer service and satisfaction.

At SMT Assembly Service, we strive to provide the highest quality products and services to ensure your satisfaction. If you need help with any technical issues, please contact our support team and we will be happy to assist you.



Packing and Shipping:

Packaging and Shipping

SMT Assembly Service provides professional packaging and shipping services that are reliable and safe. We provide multiple packaging options that can accommodate a wide range of products. We also offer custom packaging and labeling services for businesses that require special needs.

We offer safe and secure shipping and transportation services with our advanced tracking system. Our team of experienced professionals ensure that your products are handled with care and arrive safely and on time.



FAQ:

Q: What is SMT Assembly Service?
A: SMT Assembly Service is a service provided by JIETENG which is specialized in assembling PCB circuit boards. JIETENG has been in this business for more than 10 years and is one of the leading manufacturers in China.
Q: What is the process of SMT Assembly Service?
A: The process of SMT Assembly Service includes components placement, soldering, and testing. The components placement includes surface mount technology (SMT), through-hole technology (THT), and mixed technology (SMT&THT). The soldering process includes wave soldering and reflow soldering. The testing process includes electrical testing and visual inspection.
Q: What are the advantages of using SMT Assembly Service from JIETENG?
A: The advantages of using SMT Assembly Service from JIETENG include quality assurance, cost-effectiveness, tight tolerances, and fast turnaround time. Quality assurance is achieved by using advanced equipment and experienced personnel to ensure consistent and reliable performance. Cost-effectiveness is achieved by using modern and efficient production lines to minimize cost. Tight tolerances are achieved by using the latest technology to ensure precise component placement. Fast turnaround time is achieved by using an efficient supply chain management system.
Q: What kind of PCBs are used in SMT Assembly Service?
A: The PCBs used in SMT Assembly Service are mainly FR4, aluminum, and ceramic. FR4 is the most commonly used material for PCBs due to its cost-effectiveness and relative good performance. Aluminum PCBs are used for high-power applications due to their excellent thermal conductivity. Ceramic PCBs are used for applications that require high insulation resistance and low dielectric loss.
Q: Does JIETENG provide custom SMT Assembly Service?
A: Yes, JIETENG does provide custom SMT Assembly Service. We have a team of experienced engineers who are able to provide customized solutions for all kinds of PCB assembly requirements. Our services include PCB design, component procurement, assembly, inspection, and testing.
