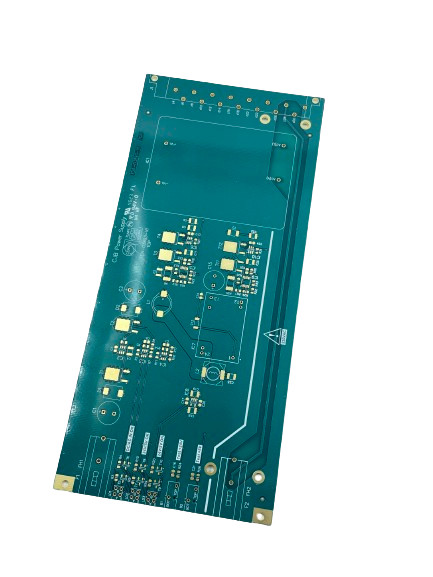

1oz copper thick circuit board multilayer board processing

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Copper Thickness 1oz Min Line Width 0.1mm
Layer 2 Assembly Service Yes
Min Hole Size 0.2mm Silkscreen Color White
Surface Finish HASL Solder Mask Color Green
Leave a Message
Product Description

Product Description:

SMT PCB Board is a multi-layer printed circuit board that integrates components, circuits, and other electrical components into a single unit. It is designed to provide reliable and stable performance to meet the stringent requirements of the electronics industry. This circuit board is composed of multiple layers of copper foil and has a board thickness of 1.6mm. It features 0.1mm minimum line spacing, white silkscreen color, and an HASL surface finish. We also provide turnkey assembly services to ensure that the product can be assembled quickly and efficiently. Our SMT PCB Board is the perfect solution for your electronic projects.



  • Product Name: SMT PCB Board
  • Min Line Spacing: 0.1mm
  • Min Line Width: 0.1mm
  • Solder Mask Color: Green
  • Assembly Service: Yes
  • Layer: 2
  • Multi-Layer Circuit Board: Yes

Technical Parameters:

Parameter Value
Board Thickness 1.6mm
Copper Thickness 1oz
Min Line Spacing 0.1mm
Surface Finish HASL
Layer 2
Min Line Width 0.1mm
Solder Mask Color Green
Impedance Control Yes
Assembly Service Yes
Silkscreen Color White
Product Type Electronic Circuit Board, Integrated Circuit Board, Printed Circuit Board, PCB Board


JIETENG multi-layer PCB circuit board is designed to provide customers with reliable and high-quality electronic circuit boards. It is made of FR4 material with HASL surface finish, 1.6mm board thickness and excellent impedance control. The white silkscreen printing can ensure that the printing is clear and consistent. It is ideal for many electronic circuit board applications such as electronic circuit board design, multi-layer circuit board manufacturing, etc.

The features of JIETENG multi-layer PCB circuit board make it an ideal solution for customers who need reliable and high-performance electronic circuit boards. It is highly reliable and durable, and can withstand extreme conditions and long-term usage. It is also cost-effective and provides excellent performance. The PCB board is also easy to install and use, making it a great choice for any electronic circuit board applications.

JIETENG multi-layer PCB circuit board is an ideal choice for a variety of electronic circuit board applications. It is designed to provide superior performance, reliability and cost-effectiveness. It is also easy to install and use, making it a great choice for any electronic circuit board design or manufacturing.



JIETENG SMT PCB Board Custom Service

JIETENG provide custom SMT PCB Board services with a board thickness of 1.6mm, minimum hole size of 0.2mm, minimum line width of 0.1mm and solder mask color of green. We also provide assembly service. As a leading multi-layer circuit board manufacturer, we are dedicated to providing quality electronic circuit boards with high performance.


Support and Services:

SMT PCB Board Technical Support and Service

We provide technical support and services for SMT PCB Board. Our services include:

  • Offering technical advice and assistance to our customers.
  • Responding quickly to customer inquiries in a timely manner.
  • Providing product training and installation services.
  • Providing on-site repair services for our products.
  • Providing periodic maintenance and upgrade services.

We strive to provide our customers with the best technical support and services possible. Our team is always available to answer any questions or concerns our customers may have. If you have any questions or need assistance, please feel free to contact us.


Packing and Shipping:

Packaging and Shipping for SMT PCB Board

The SMT PCB Board is carefully packaged using quality materials to ensure it is not damaged during transit. We package the board in an ESD-safe container with antistatic foam to protect it from any static electricity.

The package is then securely sealed and labelled with the part number. All packages are tracked and a shipping notification will be sent once the package is dispatched.

We offer a variety of shipping options to suit different needs. We use reputable shipping companies to ensure that your package is delivered safely and on time.



Q1: What is SMT PCB Board?

A1: SMT PCB board, manufactured by JIETENG, is a printed circuit board with surface-mounted components. It has model number PCB circuit board and is made in China.

Q2: What are the benefits of SMT PCB Board?

A2: SMT PCB board is typically smaller and lighter than traditional boards, making it ideal for miniaturized electronics. It also requires fewer interconnections, making it easier to manufacture and cheaper to produce.

Q3: What materials are used to make SMT PCB Board?

A3: SMT PCB boards are usually made of a combination of copper, laminate, and solder mask. They may also include components such as resistors, capacitors, and integrated circuits.

Q4: What is the maximum size of an SMT PCB Board?

A4: The maximum size of an SMT PCB board depends on the manufacturer, but typically they can be as large as 24" x 36".

Q5: What is the typical lead time for an SMT PCB Board?

A5: The lead time for an SMT PCB board from JIETENG typically ranges from 2 to 8 weeks, depending on the complexity of the board.
