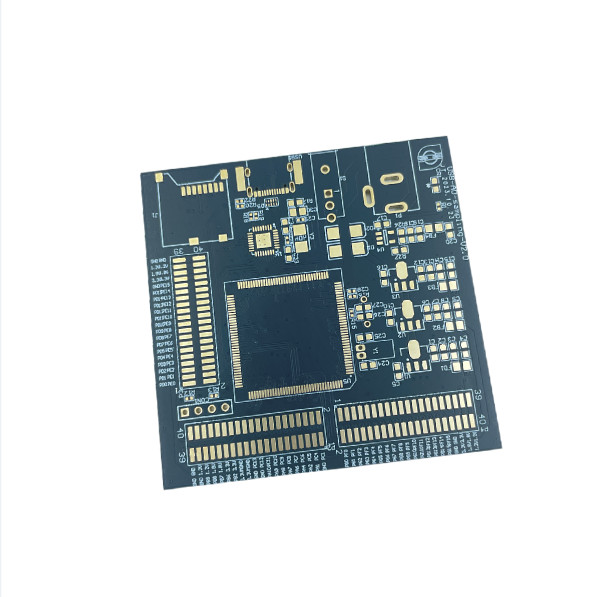

PCB circuit board processing 8-layer board 4350 Rogers board

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Finish HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Etc. Min. Line Spacing 0.1mm
Copper Thickness 1-4oz Material FR4, High TG FR4, Halogen Free, Rogers, Etc.
Solder Mask Color Green, Blue, White, Black, Red, Etc. Silkscreen Color White, Black, Yellow, Etc.
Layer Count 2-20 Min. Line Width 0.1mm
