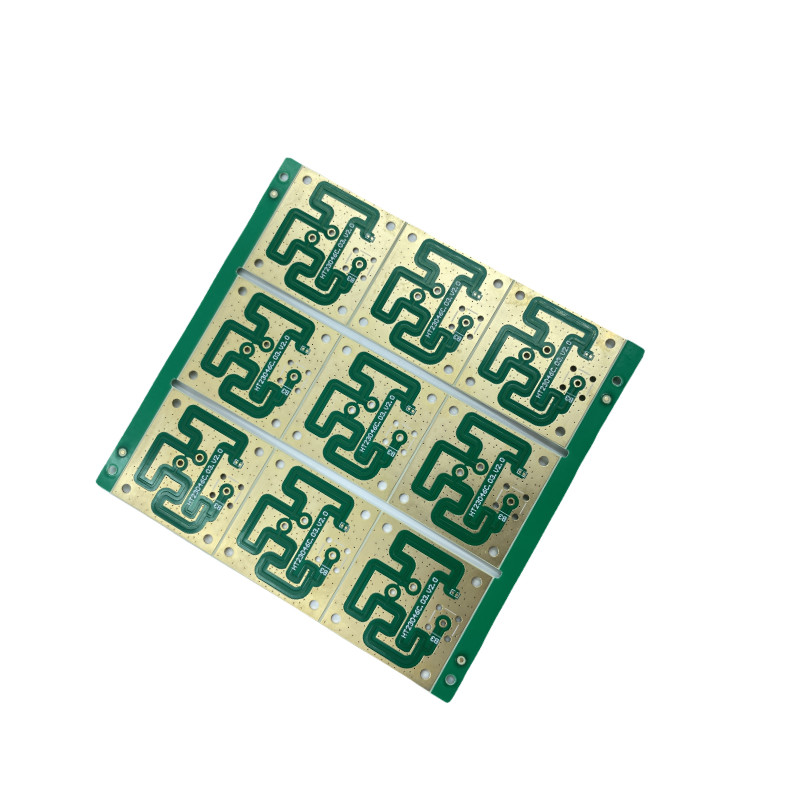

PCB circuit board manufacturer customizes drawings and samples

Place of Origin China
Brand Name JIETENG
Model Number PCB circuit board
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Blank carton, vacuum packed
Delivery Time 5-8 working day
Payment Terms Negotiable
Supply Ability 360000 square meters / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Copper Thickness 1oz Silkscreen Color White
Assembly Service Yes Board Thickness 1.6mm
Solder Mask Color Green Min Line Width 0.1mm
Layer 2 Impedance Control Yes
Leave a Message
Product Description

Product Description:

SMT PCB Board is an electronic circuit board, also known as a printed circuit board (PCB) or an integrated circuit board, which is a physical interconnecting structure between the electrical components of the electronic devices. It is designed for the purpose of providing mechanical support and electrical connections between the components. The SMT PCB Board is manufactured with a HASL (Hot Air Solder Leveling) surface finish and a board thickness of 1.6mm. It also comes with a green solder mask and offers an assembly service with a minimum hole size of 0.2mm. With its reliable quality, the SMT PCB Board is sure to meet your needs in the most efficient and cost-effective way.



Features:

  • Product Name: SMT PCB Board
  • Assembly Service: Yes
  • Silkscreen Color: White
  • Surface Finish: HASL
  • Min Hole Size: 0.2mm
  • Impedance Control: Yes
  • Electronic Circuit Board
  • Integrated Circuit Board


Technical Parameters:

Parameter Value
Layer 2
Min Line Width 0.1mm
Silkscreen Color White
Copper Thickness 1oz
Min Hole Size 0.2mm
Surface Finish HASL
Board Thickness 1.6mm
Min Line Spacing 0.1mm
Assembly Service Yes
Impedance Control Yes


Applications:

JIETENG is a leading producer of Printed Circuit Board (PCB) and Integrated Circuit Board (ICB). Our PCBs feature a high-quality HASL surface finish, and are available with 1oz copper thickness and 1.6mm board thickness. Our Multi-Layer Circuit Boards, made from durable FR4 material, provide superior assembly service and dependable performance. Our PCBs are used for a wide variety of applications in industries ranging from consumer electronics to automotive and medical.

JIETENG's PCBs are highly reliable and suitable for a multitude of applications including consumer electronics, aerospace, medical, automotive, industrial, telecommunications, military, and more. The boards can be used for power and signal transmission, as well as high-speed digital processing. Our boards are designed and tested to meet the highest quality standards and offer superior performance in even the most challenging environments.

Our PCBs are also designed to be cost-effective and feature a wide range of customization options. Our Multi-Layer Circuit Boards are designed with advanced manufacturing processes, ensuring reliable performance and superior design flexibility. JIETENG's PCBs also feature a high-quality HASL surface finish, making them ideal for high-frequency applications such as RF and microwave applications.

JIETENG's PCBs are the perfect choice for any industry that requires high quality, reliable performance, and cost-effective printed circuit boards. Our products are designed to meet the highest quality standards and are backed by superior customer service. JIETENG is committed to providing the best products and services for your PCB needs.



Customization:

JIETENG Customized SMT PCB Board

Brand Name: JIETENG

Model Number: PCB circuit board

Place of Origin: China

Layer: 2

Material: FR4

Solder Mask Color: Green

Impedance Control: Yes

Assembly Service: Yes

JIETENG customizes SMT PCB Board that is perfect for electronic circuit board and multi-layer circuit board manufacturing. Our PCB boards are made from FR4 material with two layers, soldermask color in green, and impedance control. We also provide assembly services.



Support and Services:

SMT PCB Board Technical Support and Services

We provide a full range of technical support and services for SMT PCB boards. Our experienced team of technicians are available to assist with any questions or issues you may have.

We offer a comprehensive range of services for all of our SMT PCB boards, including product testing, installation and maintenance. Our staff can help to identify and fix any problems that may arise with the board. We also provide training for those who are unfamiliar with the product.

We provide full customer service support for all of our SMT PCB boards. Our team is available to answer any questions or concerns you may have. We also provide regular updates on the latest products and technologies.

We strive to provide the highest quality of customer service and technical support for all of our SMT PCB boards. Our goal is to ensure that you have a successful product experience.



Packing and Shipping:

SMT PCB Board Packaging and Shipping:

SMT PCB Board is packaged and shipped according to the standards of the International Safe Transit Association (ISTA). The board is placed in an anti-static bag and then placed in a box that is sized to allow for a minimum of two inches of cushioning material around the board. The box is then sealed and labeled with the customer's name and address. The box is then ready for shipment.



FAQ:

  • Q: What is JIETENG PCB circuit board?
    A: JIETENG PCB circuit board is a high-quality printed circuit board (PCB) for electronic components assembly and electrical connection. It is produced in China.
  • Q: What are the materials used in JIETENG PCB circuit board?
    A: JIETENG PCB circuit board is made of material such as FR-4 Glass Epoxy, Polyimide, Polyester, Copper Clad Laminates, etc.
  • Q: What is the size of JIETENG PCB circuit board?
    A: JIETENG PCB circuit board is available in various sizes, ranging from 0.2mm to 5mm.
  • Q: What is the application of JIETENG PCB circuit board?
    A: JIETENG PCB circuit board is widely used in electronic products such as computers, mobile phones, digital cameras, toys, etc.
  • Q: What is the lead time of JIETENG PCB circuit board?
    A: Generally, the lead time of JIETENG PCB circuit board is about 7-10 days.
