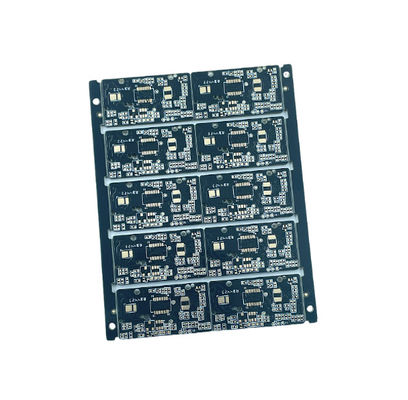

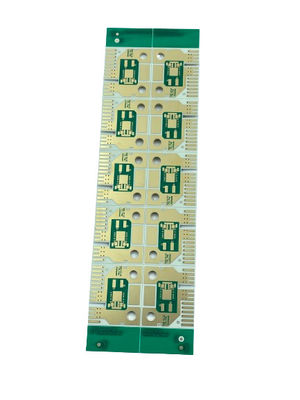

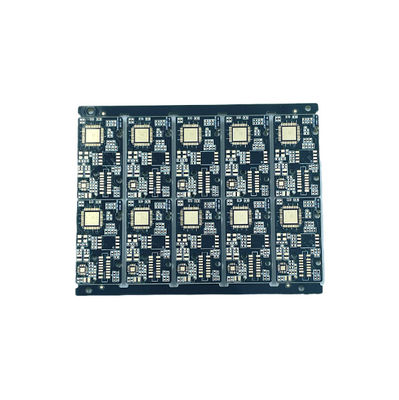

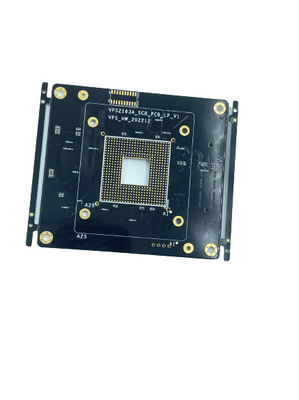

High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask

  • High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask
  • High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask
  • High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask
  • High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask
  • High Frequency Signal Board Blind Hole For Antenna Base Station Assembly Black Solder Mask
Place of Origin CHINA SHENZHEN
Brand Name JIETENG
Certification ISO/TS16949/RoHS/TS16949
Model Number Multilayer Hybrid Circuit Board
Minimum Order Quantity 1pcs
Price 0.2-6USD/piece
Packaging Details Inner vacuum packing, outer standard carton
Delivery Time 5-8 working days for delivery
Payment Terms T/T, Western Union
Supply Ability 150000 Square Meter/Square Meters per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Min. Annular Ring 3mil Board Thickness 0.4mm-5.0mm
Min. Line Width/Space 3mil/3mil Copper Thickness 1/2oz-4oz
Solder Mask Color Green, White, Black Testing AOI, Flying Probe,
Base Material FR-4,high TG FR4,FR4，ROGERS，ARLON，ISOLA Type Electronic Board,Lithium Battery BMS,printing Circuit Board,Customized,pcb Control Board
Highlight

PCB Through Hole Assembly

,

Circuit Board Through Hole Assembly 0.2mm

,

Through Hole PCB Board Assembly
Leave a Message
Product Description

Product Description:

Circuit Boards, also known as PCB manufacturing, PCBs are used in a variety of applications. Our PCB boards include copper thicknesses from 1/2oz to 4oz, with a minimum line/space of 3mil/3mil. We use advanced testing techniques such as AOI, X-ray, and Flying Probe to ensure the highest quality. Our products are made with materials such as FR4 and Rogers. You can trust us for all your PCB board assembly needs!



Features:

  • Product name: PCB board
    2.Solder mask color: green, white, black, etc.
    3.Surface treatment: HASL, ENIG, OSP, etc.
    4.Minimum aperture: 0.2mm
    5.Board thickness: 0.4mm-5.0mm
    6.Copper thickness: 1/2oz-4oz
    7.PCB manufacturing: PCB layout, substrate manufacturing, etching, drilling, electroplating, etc.

Applications:

JIETENG is a reliable PCB board manufacturer with many years of industry experience. Our advanced manufacturing technology enables us to provide high-quality PCB board services, such as high-precision PCB manufacturing, circuit board assembly, etc. We specialize in custom PCB board manufacturing with a minimum ring width of 3mil, surface finishes of HASL, ENIG, OSP, etc., board thickness of 0.4mm-5.0mm, and a minimum line width/spacing of 3mil/3mil. We provide comprehensive testing services, such as AOI, X-ray, Flying Probe, etc. to ensure that our products are of the highest quality. All of our products are manufactured using the latest technology and are designed to meet the most stringent industry standards. Our team of experienced engineers is dedicated to helping our customers achieve their desired goals. With our commitment to quality and customer service, JIETENG is the perfect choice for all your PCB board needs.



Customization:

Jieteng has been providing customers with high-quality PCB circuit board services. Our PCB board services include:

1.Brand name: Jieteng
2.Model: PCB circuit board
3.Origin: China
4.Minimum aperture: 0.2mm
5.Board thickness: 0.4mm-5.0mm
6.Material: FR4, Rogers, etc.
7.Minimum line width/spacing: 3mil/3mil
8.Silk screen color: white, black, yellow, etc.


Our experienced and professional team is committed to providing circuit board services tailored to your exact requirements. We specialize in PCB manufacturing, circuit board assembly services and other high-tech solutions. If you need OEM processing, please contact us immediately.

Packing and Shipping:

Packaging and Shipping for PCB Board Assembly

Packaging for PCB Board Assembly requires careful attention to detail to ensure product safety and integrity during shipping. The following guidelines should be followed:

  • Pack the PCB Board Assembly in an anti-static bag to protect against static electricity and other elements.
  • Place the PCB Board Assembly in a box that is at least twice the size of the product.
  • Pack the box with enough cushioning material to protect against shock and vibration.
  • Place a label on the package with the customer's address information.
  • Upon arrival, inspect the product for any signs of damage or tampering.

Shipment of PCB Board Assembly should be done using reliable carriers and methods that provide tracking information. Every package should be tracked and insured in case of loss or damage.



FAQ:

Q1: What is the brand name of the PCB board?
A1: The brand name of the PCB board is JIETENG.

Q2: What is the product model?
A2: The product model is PCB circuit board.

Q3: Where is the product made?
A3: The product is made in China.

Q4: What materials are used for the PCB board ?
A4: The PCB board is made of high-quality materials such as fiberglass, copper and solder.

Q5: Does the PCB board come with installation instructions?
A5: Yes, the PCB board assembly comes with installation instructions.

Q6. What file formats are accepted for PCB production?
A6: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium Designer.
