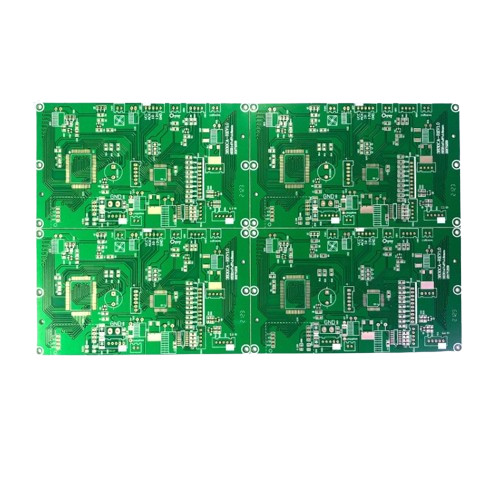

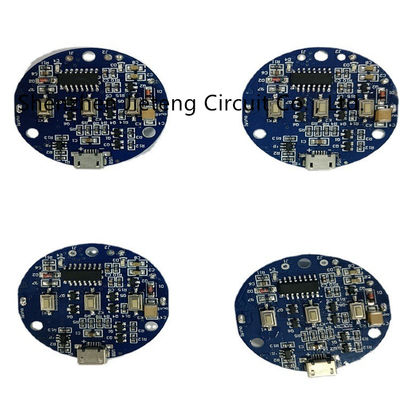

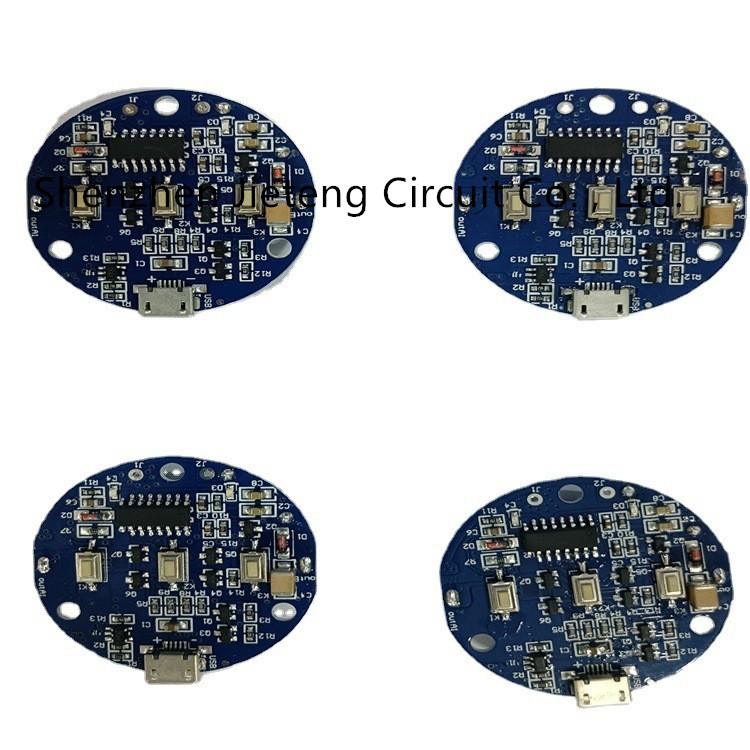

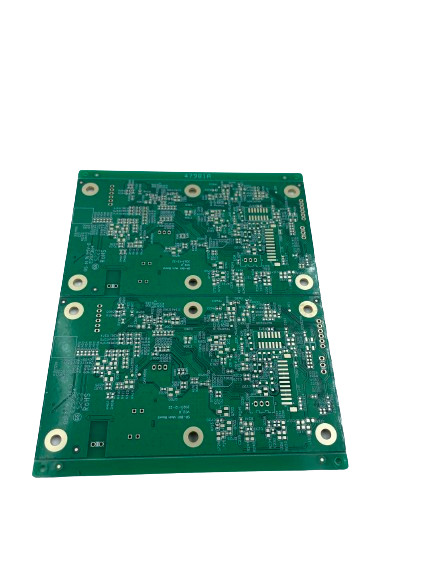

ODM FR-4 PCB New Energy AI Intelligent Circuit Board Rogers

  • ODM FR-4 PCB New Energy AI Intelligent Circuit Board Rogers
  • ODM FR-4 PCB New Energy AI Intelligent Circuit Board Rogers
  • ODM FR-4 PCB New Energy AI Intelligent Circuit Board Rogers
  • ODM FR-4 PCB New Energy AI Intelligent Circuit Board Rogers
Place of Origin CHINA SHENZHEN
Brand Name JIETENG
Certification UL ROHS SGS TS16949
Model Number Hybrid Circuit Board
Minimum Order Quantity 10 pcs
Price 0.8-5USD/piece
Packaging Details Vacuum packing in blank cartons
Delivery Time 6-9 working day
Payment Terms T/T, Western Union
Supply Ability 10000PCS/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Copper Thickness 1OZ 1~4oz Min. Line Spacing 0.2mm
Solder Mask Color Green Black/white/red/blue/yellow Material FR4 Rogers TACONIC
Max Board Size 1200mm*600mm Min. Hole Size 0.15mm
Surface Finishing HASL,OSP,ENIG,HASL Lead Free,Gold Plating Number Of Layers 4-Layer,1-16 Layers
Board Thickness 0.5~3.2mm Solder Mask Green/black/white/red/blue/yellow
Highlight

CEM-1 audio circuit board

,

FR-4 audio circuit board

,

FR-4 custom pcb boards
Leave a Message
Product Description

PCB assembly custom Smart Home Card Door Lock Pcba Control Board



Essential details
Place of Origin:
 China
Base Material:
FR4 Rogers
Copper Thickness:
0.5oz-4oz
Board Thickness:
0.4T-4.0T
Min. Hole Size:
0.2mil
Min. Line Width:
3mil
Min. Line Spacing:
3mil
Surface Finishing:
OSP / HASL /ENIG
Product name:
Circuit Board
Color:
White/Black/Yellow/Green/Red/Blue
Layer:
1-16 Layers





















































Project
Process Capability
Number Of Layers
1-16layers
Board Thickness
0.3-3.2mm
Type Of Substrate
FR-4 halogen-free report TG
Substrate Manufacturer
South Asia, KB
Copper Foil Thickness
1/2-4 OZ
Peel Strength
≥12.3N/CM
Maximum Working Plate Size
600mm*1200mm
Minimum Line Width Distance
0.075mm/0.075mm
Minimum Welding Ring
≥0.125mm
Impedance Control
≥250hm
Minimum Aperture
0.1mm
Pth/npth
±0.076mm±0.05mm
Hole Copper Thickness
≥35Rm
Minimum Dielectric Layer
0.0635mm
Layer Bias
±0.076mm
Minimum Margin Oil Bridge
0.05mm
Minimum Text Width
0.10mm
Version Bend
≤0.5%
Aspect Ratio
08:01
