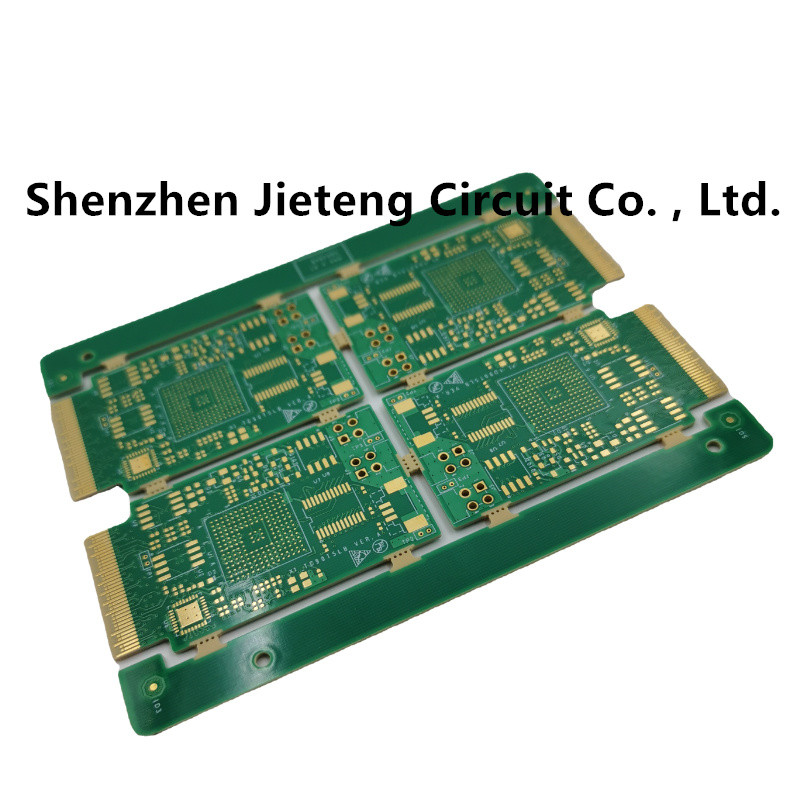

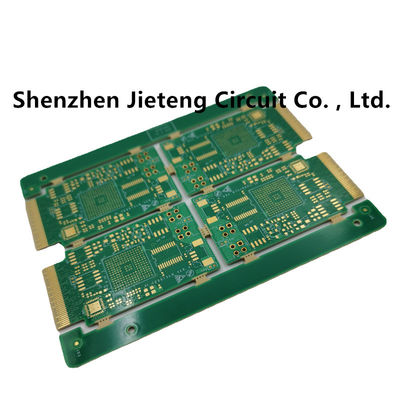

Single Double Sided SMT circuit PCBA Board Assembly

Place of Origin Guangdong, China
Brand Name Rogers FR4
Certification ISO/TS16949/RoHS/TS16949
Model Number Rogers
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Vacuum packing in blank cartons
Delivery Time 3-4 days delivery
Payment Terms Negotiable
Supply Ability 50000 Piece/Pieces per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Copper Thickness 1/2OZ 1OZ 2OZ 3OZ Base Material FR-4
Min. Line Spacing 3mil Color Green
Layer 1-60L Name PCB Board Production
High Light

Single Sided pcba board assembly

,

SMT pcba board assembly

,

PCBA smt circuit board

Leave a Message
Product Description

SMT PCB Board Single-double-sided and multi-layer high-frequency PCB printed circuit board



Why Choose Us
Advantages
1)Professional engineer team --help you to check design and do engineering before production
2)Rich experiences in PCB production industry--provide high quality and competitive price PCB.
3) After-sales service--every problem you have will get our professional advice and solution.
4) Constant follow up-- make us have the fast reaction of your requirement.
5) Inspected by the Inspection Institution
Product Description
Item(pcb)
Capability (pcb)
Base Material
FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon
Layers
1-22
Finised inner/outer copper thickness
1-6OZ
Finished board thickness
0.2-7.0mm
Min hole size
Mechanical hole: 0.15mm
Laser hole: 0.1mm
Controlled Impedance
+/-5%
Plugging vias capability
0.2-0.8mm
Outline profile
Rout/ V-cut/ Bridge/ Stamp hole
Surface treatment
HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
