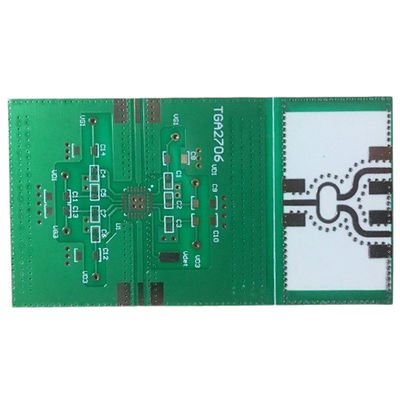

0.1mm Min Line Width FR4 PCB Board with White Silkscreen Color and Impedance Control

Product Description:

The FR4 PCB Board is a high-quality, durable printed circuit board designed to meet the needs of a wide range of electronic applications. As a key component in the electronics industry, the FR4 PCB stands out for its robust construction and reliability. FR4 refers to a grade designation assigned to fiberglass-reinforced epoxy laminates that are used as the base material for PCBs. This product summary aims to provide detailed information about the FR4 PCB Board's specifications and features, highlighting its surface finish, board thickness, minimum line spacing, copper thickness, and the number of layers it possesses.

Starting with the surface finish, the FR4 PCB Board boasts a Hot Air Solder Leveling (HASL) finish. HASL is a conventional type of surface finish used for PCBs, known for its effectiveness in protecting the copper circuitry from oxidation and providing a good surface for soldering components to the board. This finish ensures excellent wetting during component soldering and provides long-term reliability for the board's connections.

The board thickness is a standard 1.6mm, which is the most common thickness used in various electronics. This thickness provides a balance between strength and flexibility, making the FR4 PCB Board suitable for a multitude of applications ranging from consumer electronics to industrial equipment. The 1.6mm thickness also ensures compatibility with a wide array of enclosures and hardware, making it a versatile choice for designers and manufacturers.

One of the critical specifications of the FR4 PCB Board is its minimum line spacing, which is a mere 0.1mm. This fine line spacing allows for higher density circuit designs, enabling more complex circuits to be fit into a smaller space. The ability to support such fine line spacing is crucial for modern electronics, which require miniature components and intricate circuit patterns to achieve advanced functionality.

When it comes to copper thickness, the FR4 PCB Board features a 1oz copper weight. This thickness of copper is standard and provides a good balance between conductivity and heat dissipation. The 1oz copper thickness is sufficient for a wide range of electronic applications, ensuring that the board can handle the current requirements of typical components while also maintaining structural integrity over time.

The FR4 PCB Board is constructed with 6 layers, allowing for complex multilayer designs that can accommodate more advanced circuits. The use of multiple layers is essential for achieving higher circuit densities and for separating different signal types to reduce interference. Multilayer boards like this one are beneficial for applications requiring high-speed signal processing, RF communication, or precise power distribution.

The combination of these features makes the FR4 PCB Board an exemplary choice for any application requiring a fiberglass-reinforced PCB. The term "fiberglass-reinforced" refers to the glass fiber that provides structural strength to the board, ensuring that it remains rigid and durable under various environmental conditions. Moreover, the use of fiberglass-reinforced plastic board in the PCB's construction provides excellent electrical insulation, thermal endurance, and chemical resistance.

In summary, the FR4 PCB Board is a highly capable, fiberglass-reinforced PCB designed for electronic applications that demand precision, durability, and high performance. With its HASL surface finish, standard board thickness of 1.6mm, fine minimum line spacing of 0.1mm, adequate copper thickness of 1oz, and a 6-layer configuration, it stands as an exemplary solution in the realm of advanced printed circuit boards. Whether for consumer electronics, industrial systems, or high-tech innovations, the FR4 PCB Board delivers the quality and reliability required for today's demanding electronic environments.

Features:

• Product Name: FR4 PCB Board
• Copper Thickness: 1oz
• Material: FR4 - Flame-Retardant Printed Board
• Impedance Control: Yes
• Min Line Spacing: 0.1mm
• Board Thickness: 1.6mm
• Type: Flame-Retardant Printed Circuit Board

Technical Parameters:

Applications:

The JIETENG brand, known for its impeccable quality in the electronics manufacturing realm, offers the FR4 PCB Board, model number PCB circuit board, which stands as a paragon of robustness and precision. Originating from China, this product is crafted with meticulous attention to detail, ensuring that each board meets the highest standards of quality and reliability. The FR4 PCB Board is a fiberglass-reinforced plastic board, a material chosen for its excellent electrical insulation properties and durability, making it an ideal substrate for a wide range of electronic applications.

With a substantial copper thickness of 1oz, the JIETENG FR4 PCB Board is engineered to accommodate a variety of electrical loads, ensuring optimal performance for electronic circuits. The board features an impressive layer count of 6, allowing for complex and multi-faceted circuit designs. This layering, coupled with state-of-the-art impedance control, ensures that the electrical signal integrity is maintained across the board, making it a reliable choice for high-speed circuits.

The JIETENG FR4 PCB Board boasts a minimum line spacing of 0.1mm, which is indicative of the board's capacity for high-density component placement. This fine line spacing enables designers to create intricate and compact circuits, essential for modern electronic devices that demand miniaturization without compromising on functionality. The surface finish of the board is HASL (Hot Air Solder Leveling), a common and cost-effective finish that provides a reliable surface for soldering components onto the PCB.

As a flame-retardant printed circuit board, the JIETENG FR4 PCB is designed to meet stringent safety standards, reducing the risk of fire in electronic devices. This feature is particularly important in applications where the PCB is exposed to high temperatures or where safety is of the utmost concern. The fiberglass-reinforced PCB is, therefore, an ideal choice for use in the automotive industry, aerospace technology, medical devices, and consumer electronics, where reliability and safety cannot be compromised.

In summary, the JIETENG FR4 PCB Board is a versatile and reliable component, suitable for a multitude of applications where high-quality and performance are required. Its robust fiberglass-reinforced plastic board construction, precise impedance control, and flame-retardant capabilities make it a preferred choice for engineers and designers across various industries looking to create state-of-the-art electronic products.

Customization:

Brand Name: JIETENG

Model Number: PCB circuit board

Place of Origin: China

Impedance Control: Yes

Board Thickness: 1.6mm

Min Line Width: 0.1mm

Solder Mask Color: Green

Type: PCB Board

Experience the reliability and precision of JIETENG's Flame-Retardant Printed Board, meticulously crafted to meet your exacting standards. Our FR4 PCB Board is designed with Impedance Control and a standard Board Thickness of 1.6mm, ensuring durability and superior performance. Embrace the innovation with our JIETENG PCB circuit board, a symbol of quality and excellence in the Flame-Retardant Printed Board industry.

Support and Services:

The FR4 PCB Board comes with comprehensive technical support and services to ensure your satisfaction and the optimal performance of your product. Our support includes access to a detailed FAQ section, instructional guides, and best practices for utilizing the FR4 PCB Board effectively. Additionally, we provide troubleshooting assistance and advice on maintenance to extend the life of your product.

For more in-depth support, our team of experts is available to provide guidance on design, layout, and material selection to ensure that your FR4 PCB Board meets your specific requirements. We also offer tips on thermal management, signal integrity, and power distribution to help you overcome common challenges associated with printed circuit board applications.

Please note that while we strive to provide comprehensive support, our services do not include physical repair or replacement of components. We recommend consulting with a professional technician for any hardware issues that require hands-on intervention. For further assistance, please refer to our user manual or reach out to our customer support team through the appropriate communication channels outlined on our website.

Packing and Shipping:

The FR4 PCB Board is securely packaged in an anti-static bag to prevent electrostatic discharge damage. It is then cushioned with foam or bubble wrap and placed in a sturdy cardboard box designed to withstand the rigors of shipping. Each box is sealed with tamper-evident tape and clearly labeled with handling instructions to ensure the product arrives in perfect condition. For added security and traceability, each package includes a unique tracking number. Please handle with care and avoid exposure to moisture during storage and transportation.

FAQ:

Q1: What is the brand name of the PCB circuit board?

A1: The brand name of the PCB circuit board is JIETENG.

Q2: Can you provide the model number for the FR4 PCB Board?

A2: Yes, the model number for our FR4 PCB Board is "PCB circuit board".

Q3: Where is the JIETENG FR4 PCB Board manufactured?

A3: The JIETENG FR4 PCB Board is manufactured in China.

Q4: What type of applications is the JIETENG PCB circuit board suitable for?

A4: The JIETENG PCB circuit board is suitable for a wide range of applications including consumer electronics, automotive, telecommunications, and industrial equipment, among others.

Q5: How can I identify the quality of the JIETENG FR4 PCB Board?

A5: The quality of the JIETENG FR4 PCB Board can be identified by its manufacturing precision, adherence to industry standards, and the quality of materials used. It's important to look at factors such as the evenness of the copper layer, the precision of the drilling, and the overall finish of the board.
